Computer Graphics Geometry Modeling And Processing Physics-based Computer Animation

Contents

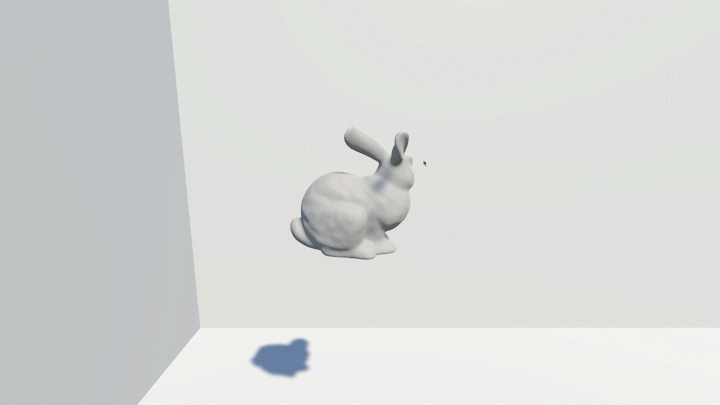

Rigid Body Dynamics Solver based on Impulse

RigidBody Dynamics Impulse

The goal of simulation is to update the state variable s^k over time. And we use semi-implicit(leapfrog) approach.

---

$$v^{[0.5]}=v^{[-0.5]}+\Delta tM^{-1}f^{[0]}$$

$$x^{[1]}=x^{[0]}+\Delta tv^{[0.5]}$$

Rigid Body Simulation

$$f_{i}\gets Force(x_{i},v_{i})$$

$$f\gets \sum f_{i}$$

$$v\gets v+\Delta tM^{-1}f$$

$$x\gets x+\Delta tv$$

$$R\gets Matrix.Rotate(q)$$

$$\tau_{i}\gets (Rr_{i})\times f_{i}$$

$$\tau \gets \sum \tau _{i}$$

$$I\gets RI_{ref}R^{T}$$

$$\omega \gets \omega +\Delta t(I)^{-1}\tau $$

$$q\gets q+\begin{bmatrix}0 &\frac{\Delta t}{2} \omega \end{bmatrix}\times q$$

For every vertex

$$x_{i} \gets x +Rr_{i} $$

if $\phi (x_{i})<0$

$$v_{i}\gets v+\omega \times Rr_{i}$$

if $v_{i}\cdot N<0$

$$v_{N,i}\gets ( v_{i} \cdot N)N$$

$$v_{T,i}\gets v_{i}-v_{N,i}$$

$$a\gets max(1-\mu T(1+ \mu_{N})\left | V_{N,i} \right | / \left | V_{T,i} \right | ,0)$$

$$v_{N,i}^{new} \gets - \mu_{N} V_{N,i}$$

$$v_{T,i}^{new} \gets av_{T,i}$$

$$v_{i}^{new} \gets v_{N,i}^{new}+v_{T,i}^{new}$$

compute the impluse j

$$ K \gets \frac{1}{M}I-(Rr_{i})^{\ast }I^{-1}(Rr_{i})^{\ast } $$

$$ j\gets K^{-1}(v_{i}^{new} -v_{i}) $$

Update v and w

$$v\gets v+\frac{1}{M}j $$

$$\omega \gets \omega +I^{-1}(Rr_{i}\times j)$$

Shape Matching

First,we move vertices independently by its velocity,with collision and friction being handled.

Second,enforce the rigidity constraint to become a rigid body again.

---

$${ c,R } =argmin\sum_{i}^{} \frac{1}{2}\begin{Vmatrix}c+Rr_{i}-y_{i}\end{Vmatrix}^{2} $$

$${ c,A } =argmin \sum_{i}^{} \frac{1}{2}\begin{Vmatrix}c+Rr_{i}-y_{i}\end{Vmatrix}^{2}$$

$$\frac{\partial E}{\partial c} = \sum_{i}^{}c+Ar_{i}-y_{i}= \sum_{i}^{}c-y_{i}=0$$

$$c = \frac{1}{N} \sum_{i}^{} y_{i}$$

$$\frac{\partial E}{\partial A} = \sum_{i}^{}(c+Ar_{i}-y_{i})r_{i}^{T} = 0$$

$$A=( \sum_{i}^{}(y_{i}-c)r_{i}^{T})(\sum_{i}^{}r_{i}r_{i}^{T})^{-1}$$

$$A=RS$$

R is rotation and S is deformation

$$A=UDV^{T}$$

$$A=(UV^{T})(VDV^{T})$$

local deformation VDV^T = S

$$R=Polar(A)$$

The polar decomposition is unique

For every vertex

$$v_{i}\gets (c+Rr_{i}-x_{i})/\Delta t$$

$$x_{i}\gets c+Rr_{i}$$

Position-Based Dynamics

PBD Cloth

---

constraint

$$\phi (x) = \begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}-L=0$$

$${x_{i}^{new},x_{j}^{new}}=argmin\frac{1}{2} {m_{i}\begin{Vmatrix}x_{i}^{new}-x_{i}\end{Vmatrix}^{2}+m_{j}\begin{Vmatrix}x_{j}^{new}-x_{j}\end{Vmatrix}^{2} }$$

$$x_{i}^{new}\gets x_{i}-\frac{m_{j}}{m_{i}+m_{j}}(\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}-L) \frac{x_{i}-x_{j}}{\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}} $$

Gauss-Seidel Approach stochastic gradient descent

For k = 0...K

For every edge e = {i,j}

$$x_{i}\gets x_{i}-\frac{1}{2} (\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}-L_{e}) \frac{x_{i}-x_{j}}{\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}} $$

$$x_{j}\gets x_{j}+\frac{1}{2} (\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}-L_{e}) \frac{x_{i}-x_{j}}{\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}} $$

Jacobi Approach

For k = 0...K

For every vertex i

$$x_{i}^{new}\gets 0$$

$$n_{i}\gets 0$$

For every edge e = {i,j}

$$x_{i}^{new}\gets x_{i}^{new}+x_{i}-\frac{1}{2} (\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}-L_{e}) \frac{x_{i}-x_{j}}{\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}}$$

$$x_{j}^{new}\gets x_{j}^{new}+x_{j}-\frac{1}{2} (\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}-L_{e}) \frac{x_{i}-x_{j}}{\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}}$$

$$n_{i}\gets n_{i}+1$$

$$n_{j}\gets n_{j}+1$$

For every vertex i

$$x_{i}\gets (x_{i}^{new}=\alpha x_{i})/(n_{i}+\alpha )$$

---

PBD

For k = 0...K

For every vertex i

$$x_{i}^{new}\gets \vec{0} $$

$$n_{i}\gets \vec{0} $$

For every edge e = {i,j}

$$x_{i}^{new} \gets x_{i}^{new} + x_{i}-\frac{1}{2} (\left | x_{i}-x_{j} \right | -L_{e})\frac{x_{i}-x_{j}}{\left | x_{i}-x_{j} \right | } $$

$$x_{j}^{new} \gets x_{j}^{new} + x_{j}-\frac{1}{2} (\left | x_{i}-x_{j} \right | -L_{e})\frac{x_{i}-x_{j}}{\left | x_{i}-x_{j} \right | } $$

$$n_{i}\gets n_{i}+1$$

$$n_{j}\gets n_{j}+1$$

For every vertex i

$$x_{i}\gets (x_{i}^{new}+\alpha x_{i} )/(n_{i}+\alpha )$$

effect

• The number of iterations
• The mesh resolution

---

Strain Limiting

Do simulation,update x and v

$$v\gets ...$$

$$x\gets ...$$

Strain limiting starts

$$x^{new}\gets Projection(x)$$

$$v\gets v+(x^{new}-x)/\Delta t$$

$$x\gets x^{new}$$

Projective Dynamics

Constrained Dynamics

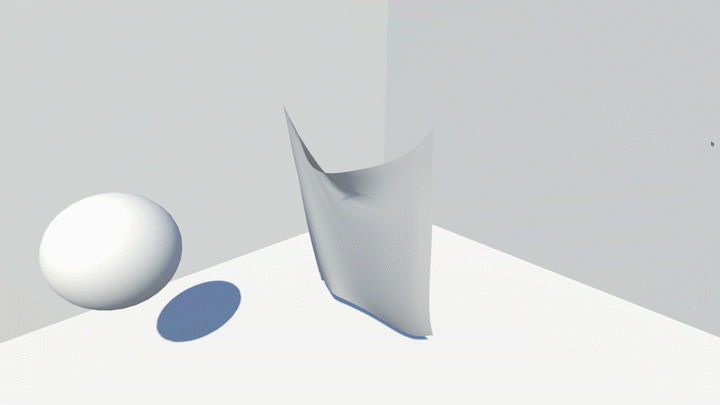

Implicit Integration Cloth Solver

---

gradient

$$g=\frac{1}{\Delta t^{2}}M(x-\tilde{x}) -f(x)$$

loop through each edge

$$g_{i}\gets g_{i}+k(1-\frac{L_{e}}{\left | x_{i}-x_{j} \right | } )(x_{i}-x_{j}),g_{j}\gets g_{j}+k(1-\frac{L_{e}}{\left | x_{i}-x_{j} \right | } )$$

update

$$x_{i}\gets x_{i}-(\frac{1}{\Delta t^{2}}m_{i}+4k )^{-1}g_{i}$$

colliding and apply impulse

$$v_{i}\gets v_{i}+\frac{1}{\Delta t}(c+r\frac{x_{i}-c}{\left |x_{i}-c \right | }-x_{i} )$$

$$x_{i}\gets c+r\frac{x_{i}-c}{\left |x_{i}-c \right | } $$

---

Mass-Spring System(explicit integration)

Explicit integration suffers from numerical instability caused by overshooting,when the stiffness k and/or the time step dt is too large.

Edge list:E

Edge length list:L

Compute Spring Forces

For every edge e

$$i\gets E[e][0]$$

$$j\gets E[e][1]$$

$$L_{e}\gets L[e]$$

$$f\gets -k(\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}-L_{e})\frac{x_{i}-x_{j}}{\begin{Vmatrix}x_{i}-x_{j}\end{Vmatrix}} $$

$$f_{i}\gets f_{i}+f$$

$$f_{j}\gets f_{j}-f$$

A Particle System

For every vertex

$$f_{i}\gets Force(x_{i},v_{i})$$

$$v_{i}\gets v_{i}+\Delta tm_{i}^{-1}f_{i}$$

$$x_{i}\gets x_{i}+\Delta tv_{i}$$

---

Mass-Spring System(implicit integration)

Implicit integration is a better solution to numerical instability.The idea is to integrate both x and v implicitly.

We should note that it is implicit integration that can overcome overshooting,overshooting is overcome by error attenuation.

And solving equations is a special case of optimization problem.

traditional

$$v^{[1]}=v^{[0]}+\Delta tM^{-1}f^{[1]}$$

$$x^{[1]}=x^{[0]}+\Delta tv^{[1]}$$

or

$$x^{[1]}=x^{[0]}+\Delta tv^{[0]}+\Delta t^{2}M^{-1}f^{[1]}$$

$$v^{[1]}=(x^{[1]}-x^{[0]})/\Delta t$$

Assuming that f is holonomic (only depends on position).depending on x only,our question is how to solve:

$$x^{[1]}=x^{[0]}+\Delta tv^{[0]}+\Delta t^{2}M^{-1}f(x^{[1]})$$

They are equivalent:

$$x^{[1]}=argminF(x)$$

for

$$F(x)=\frac{1}{2\Delta t^{2}} \begin{Vmatrix}x-x^{[0]}-\Delta tv^{[0]}\end{Vmatrix}_{M}^{2}+E(x)$$

$$\begin{Vmatrix}x\end{Vmatrix}^{2}_{M}=x^{T}Mx$$

because

$$\nabla F(x^{[1]})=\frac{1}{\Delta t^{2}}M(x^{[1]}-x^{[0]}-\Delta tv^{[0]})-f(x^{[1]})=0 $$

equivalent

$$x^{[1]}-x^{[0]}-\Delta tv^{[0]}-\Delta t^{2}M^{-1}f(x^{[1]})=0$$

Note that this is applicable to every system,not just a mass-spring system.

---

Newton-Raphson Method

optimization problem

$$x^{[1]}=argminF(x)$$

F(x) is Lipschitz continuous

goal

$$0=F'(x)\approx F'(x^{(k)})+F''(x^{(k)})(x-x^{(k)})$$

Newton's method

Initialize x⁽⁰⁾

For k = 0...K

$$\Delta x \gets -(F''(x^{(k)}))^{-1}F'(x^{(k)})$$

$$x^{(k+1)}\gets x^{(k)}+\Delta x$$

$$x^{[1]}\gets x^{(k+1)}$$

because

$$F''(x^{(k)})=\frac{\partial F^{2}(x^{(k)})}{\partial x^{2}} =\frac{1}{\Delta t^{2}} M+H(x^{(k)})$$

so

the goal is to solve

$$\mathbf{A} \Delta \mathbf{x} =\mathbf{b} $$

---

Jocobi

$$\Delta x\gets 0$$

For k= 0...K

r residual error

$$r\gets b-A\Delta x$$

if

convergence condition

$$\begin{Vmatrix}r\end{Vmatrix}<\varepsilon $$

break

diagnonal of A D

$$\Delta x\gets \Delta x+\alpha D^{-1}r$$

---

Chebyshev Accleration

---

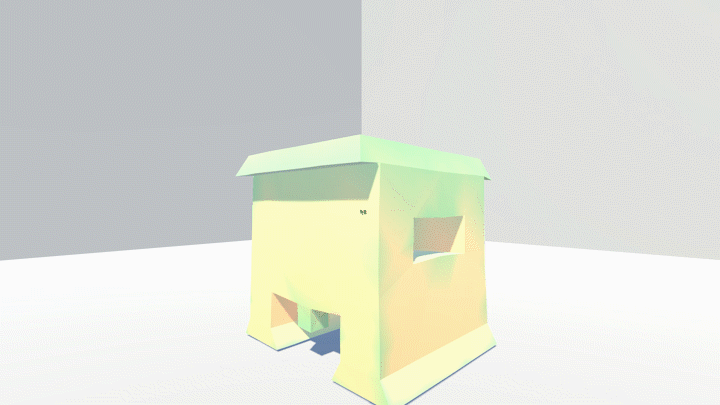

Finite Element Method

St.Venant-Kirchhoff(StVk) explicit time integration tetrahedral

First simulate the object as a simple particle system,each vertex has its own x and v,and the v is under the influence of gravity.

Then we calculate the edge matrix of a tetrahedron.And based on the FEM, calculate the deformation gradient F and the Green StrainG,and the Second Piola-Kirchhoff stressS,and finally the forces of 4 vertices.

Finally,implement the Laplacian smoothing over the vertex velocities.

---

The Linear FEM assumes that the deformation of any triangle is uniform inside.

For any point X in the reference,its deformed correspondence is :

$$x = FX+c$$

deformation gradient

$$F = \partial x/\partial X$$

Green Strain

$$G=\frac{1}{2} (F^{T} F-I)=\frac{1}{2} (VD^{2}V^{T}-I)=\begin{bmatrix} \varepsilon _{uu} & \varepsilon _{uv} & \varepsilon _{vu} & \varepsilon _{vv} \end{bmatrix}$$

Total energy

$$E = \int W(G)dA = A^{ref} W(\varepsilon _{uu} ,\varepsilon _{vv},\varepsilon _{uv})$$

Saint Venant-Kirchhoff Model

$$W(\varepsilon _{uu} ,\varepsilon _{vv},\varepsilon _{uv})=\frac{\lambda }{2} (\varepsilon _{uu}+\varepsilon _{vv})^{2}+\mu (\varepsilon _{uu}+\varepsilon _{vv}+\varepsilon _{uv})^{2} $$

Second Piola-Kirchhoff stress tensor

$$2\mu G+\lambda trace(G)I =S$$

[f1 f2]

$$\begin{bmatrix} f1 &f2 \end{bmatrix}=-A^{ref} FS\begin{bmatrix} X_{10} &X_{20} \end{bmatrix}^{-T} $$

Force

$$f_{0} = -\frac{\sigma }{6} (x_{10}\times x_{20}+ x_{20}\times x_{30}+x_{30}\times x_{10} )$$

Two-way Coupling Shallow Wave

---

Height Field

$$\frac{du(x)}{dt}=-\frac{1}{\rho } \frac{dP(x)}{dx} $$

shallow wave equation

$$\frac{d^{2}h }{dt^{2}}=\frac{h}{\rho } \frac{d^{2}p}{dx^{2}} $$

Volume Preservation

$$\sum h_{i}(t+\Delta t)=V+\frac{\Delta t^{2}H}{\Delta x^{2}\rho } \sum (P_{i-1}-P_{i})(P_{i+1}-P_{i})$$

One-way Coupling

$$h_{i,j}^{new}\gets h_{i,j}^{new}+(v_{i-1,j}+v_{i+1,j}+v_{i,j-1}+v_{i,j+1}-4v_{ij})\ast rate$$
