docs: jobs revamp

.gitbook.yaml

@@ -165,4 +165,6 @@ redirects:
     setup/install/enterprise-license: setup/install/freemium.md
     enterprise-license: setup/install/freemium.md
     usage/applications/creating-application/workflow/ci-pipeline/ci-build-pre-post-plugins: user-guide/creating-application/workflow/pre-post-tasks.md
-    usage/applications/creating-application/workflow/ci-pipeline/container-registry-override: user-guide/creating-application/workflow/ci-pipeline.md
+    usage/applications/creating-application/workflow/ci-pipeline/container-registry-override: user-guide/creating-application/workflow/ci-pipeline.md
+    usage/jobs/configuration-job: user-guide/jobs/configurations/README.md
+    usage/jobs/workflow-editor-job: user-guide/jobs/configurations/workflow-editor-job.md

docs/SUMMARY.md

@@ -108,11 +108,18 @@
     * [Deployment Visibility & Actions](user-guide/creating-application/deployment-visibility.md)
   * [Application Overview](user-guide/creating-application/overview.md)
 * [Jobs](user-guide/jobs/README.md)
-  * [Create a new job](user-guide/jobs/create-job.md)
-  * [Configurations](user-guide/jobs/configuration-job.md)
-  * [Workflow Editor](user-guide/jobs/workflow-editor-job.md)
+  * [What is Job?](user-guide/jobs/what-is-job.md)
+  * [Create a New Job](user-guide/jobs/create-job.md)
+  * [Configurations](user-guide/jobs/configurations/README.md)
+    * [Source Code](user-guide/jobs/configurations/source-code-job.md)
+    * [Workflow Editor](user-guide/jobs/configurations/workflow-editor-job.md)
+    * [ConfigMaps & Secrets](user-guide/jobs/configurations/configmap-secret/README.md)
+      * [ConfigMaps](user-guide/jobs/configurations/configmap-secret/configmap-job.md)
+      * [Secrets](user-guide/jobs/configurations/configmap-secret/secret-job.md)
+    * [Environment Overrides](user-guide/jobs/configurations/environment-override-job.md)
   * [Trigger Job](user-guide/jobs/triggering-job.md)
-  * [Overview](user-guide/jobs/overview-job.md)
+  * [Run History](user-guide/jobs/run-history-job.md)
+  * [Job Overview](user-guide/jobs/overview-job.md)
 * [Application Groups](user-guide/application-groups.md)
 * [Software Distribution Hub](user-guide/software-distribution-hub/README.md)
   * [Tenants](user-guide/software-distribution-hub/tenants.md)

docs/user-guide/jobs/README.md

@@ -1,18 +1,30 @@
 # Jobs

-Job allows manual and automated execution of your source code. Job pipeline will not have CI/CD pipeline as the job is limited to your source code only. You can also configure [preset plugins](../creating-application/workflow/pre-post-tasks.md#configure-a-task-using-preset-plugins) in your job pipeline.
+Devtron Jobs provides a streamlined way to execute specific tasks or a set of tasks defined by the user within the user's application environment.

-With job, you can execute your source code quickly and easily without going through CI/CD pipelines, which also optimize time.
+To learn more about how Jobs work, see the sections below

-![](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/jobs.jpg)

-There are two main steps in executing Job:
+* [What is Jobs](./what-is-job.md)

-* [Configurations](configuration-job.md)
+* [Creating a Job](./create-job.md)

-* [Trigger Job](triggering-job.md)
+* [Configurations](./configurations/README.md)

-In the next section, we will learn on how to create, configure, trigger a job. You can also view the details on the [Overview](overview-job.md) tab and `Run History`.
+    * [Source Code](./configurations/source-code-job.md)

+    * [Workflow Editor](./configurations/workflow-editor-job.md)

+    * [ConfigMaps & Secrets](./configurations/configmap-secret/README.md)

+      * [ConfigMaps](./configurations/configmap-secret/configmap-job.md)
+
+      * [Secrets](./configurations/configmap-secret/secret-job.md)
+
+    * [Environments Override](./configurations/environment-override-job.md)
+
+* [Trigger Job ](./triggering-job.md)
+
+* [Run History](./run-history-job.md)
+
+* [Job Overview](./overview-job.md)

docs/user-guide/jobs/configurations/README.md

@@ -0,0 +1,11 @@
+# Configurations
+
+After you have created a Job, the next step is to configure the job. This means specifying the source code and using the Workflow Editor to create and configure the job pipeline, which includes defining tasks such as code scanning, vulnerability checks, or data migrations, and configuring the sequence in which these tasks should be executed.
+
+In the following sections, we will explore how you can configure your Job, which includes,
+
+1. Configuring the [Source Code](./source-code-job.md)
+
+2. Creating and configuring the job pipeline through [Workflow Editor](./workflow-editor-job.md).
+
+3. Defining [ConfigMaps](./configmap-secret/configmap-job.md) & [Secrets](./configmap-secret/secret-job.md), and [Environment Overrides](./environment-override-job.md) for the job.

docs/user-guide/jobs/configurations/configmap-secret/README.md

@@ -0,0 +1,15 @@
+# ConfigMaps & Secrets
+
+## ConfigMaps
+
+A ConfigMap stores key-value pairs that your jobs can use as environment variables or mounted files. ConfigMaps are meant for non-sensitive data. Moreover, you can update configurations without modifying or rebuilding your container images, thus making the deployments more efficient.
+
+To configure a ConfigMap for your job pipeline, refer to the [ConfigMaps](./configmap-job) section.
+
+---
+
+## Secrets
+
+Secrets and ConfigMaps are both used to store configurations, but there is one major difference between them: ConfigMaps store key-values in normal text format, whereas secrets store them in base64 encrypted form. Devtron hides the data of secrets for the normal users, and it is only visible to the users having edit permission.
+
+To configure a Secret for your job pipeline, refer to the [Secrets](./secret-job) section.

docs/user-guide/jobs/configurations/configmap-secret/configmap-job.md

@@ -0,0 +1,197 @@
+# ConfigMaps
+
+A ConfigMap stores key-value pairs that your jobs can use as environment variables or mounted files. Unlike secrets, ConfigMaps are meant for non-sensitive data. Moreover, you can update configurations without modifying or rebuilding your container images, thus making the deployments more efficient.
+
+---
+
+## Add ConfigMap
+
+{% hint style="warning" %}
+### Who Can Perform This Action?
+Users need to have the **Admin role** or the **Super Admin role**.
+Refer the [User permissions](../../../global-configurations/authorization/user-access.md#roles-available-for-jobs).
+{% endhint %}
+

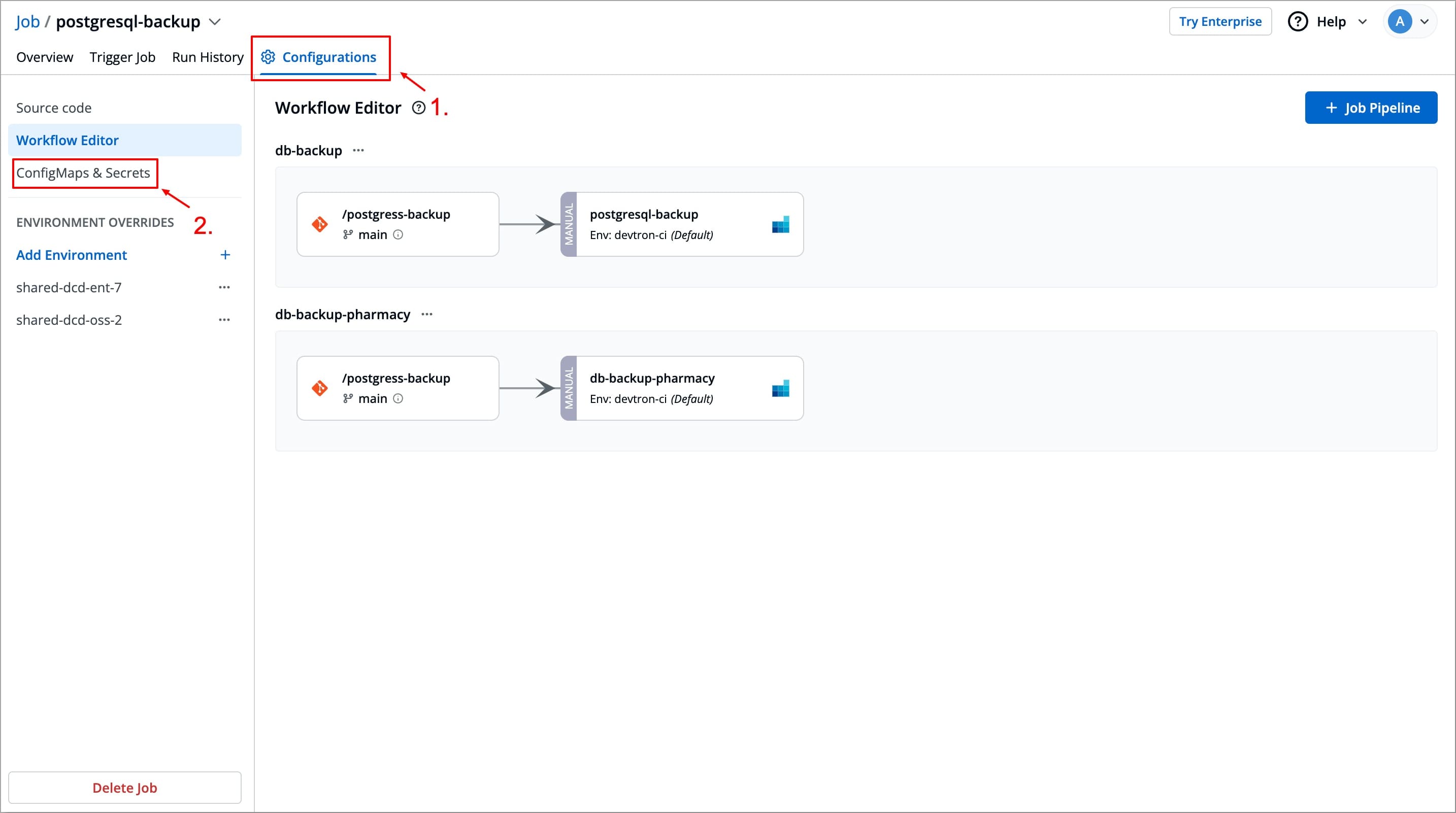

+1. Go to **Configurations** → **ConfigMaps & Secrets**.
+
+    ![Figure 1: ConfigMaps & Secrets](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap.jpg)
+

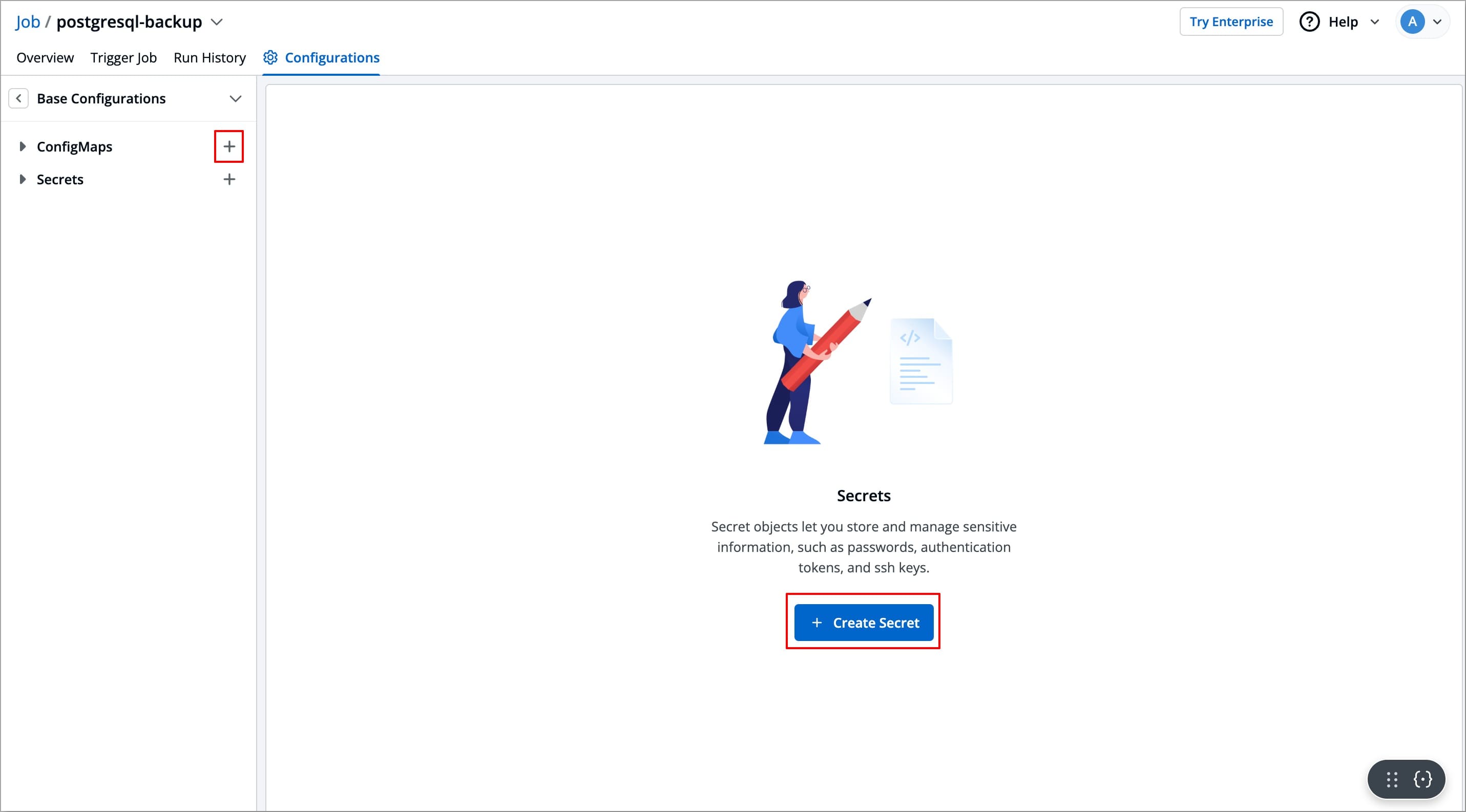

+2. Click the **+** button next to **ConfigMaps**.
+
+    ![Figure 2: Creating ConfigMap](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-add.jpg)
+

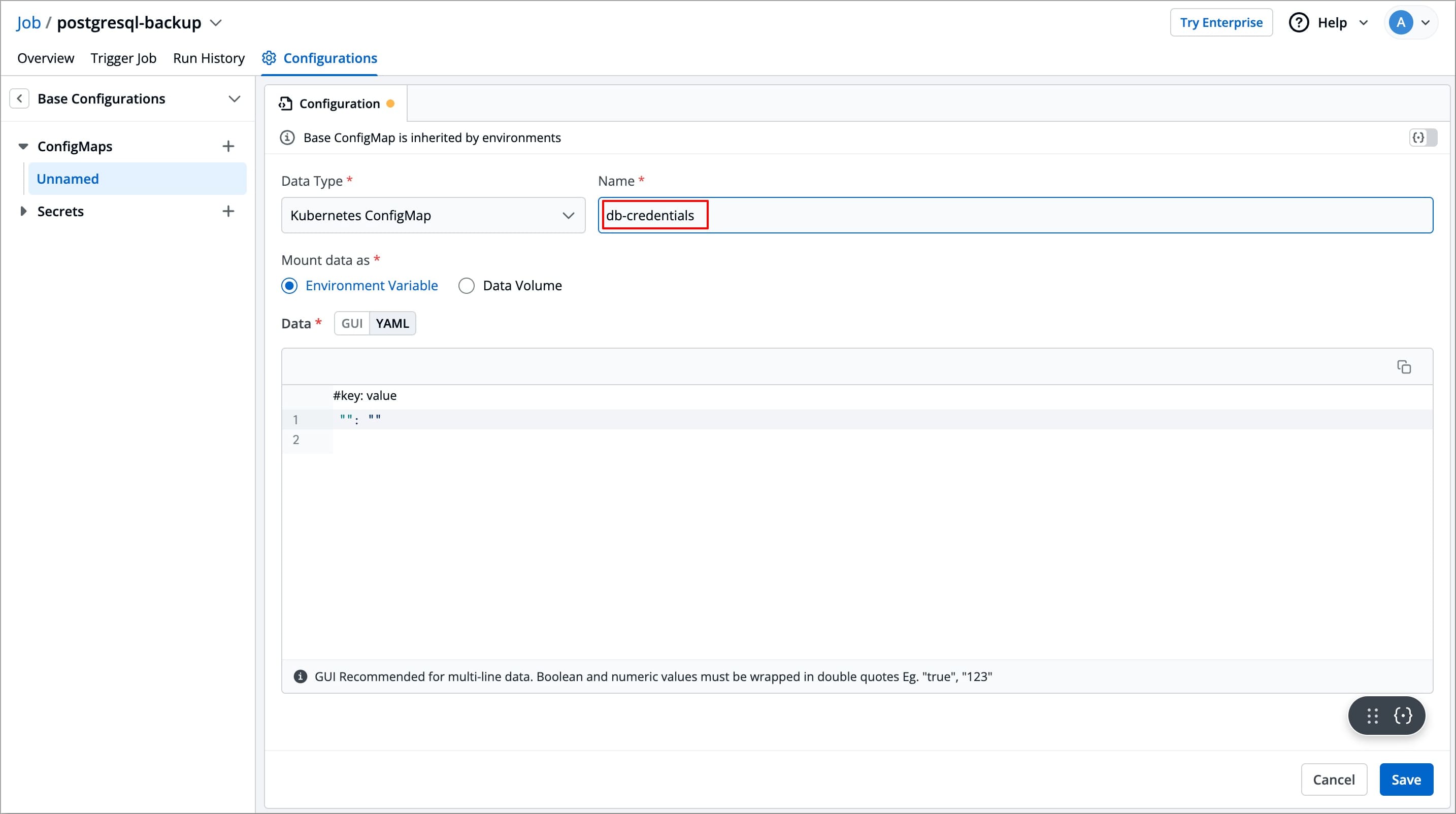

+3. Enter a name for the ConfigMap (Once defined, the name cannot be changed later).
+
+    **Note**: In case you are using an External Kubernetes ConfigMap, the name should be exactly the same as the name given using the `kubectl create configmap <configmap-name> <data source>` command.
+
+    ![Figure 3: Entering ConfigMap Name](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-name.jpg)
+

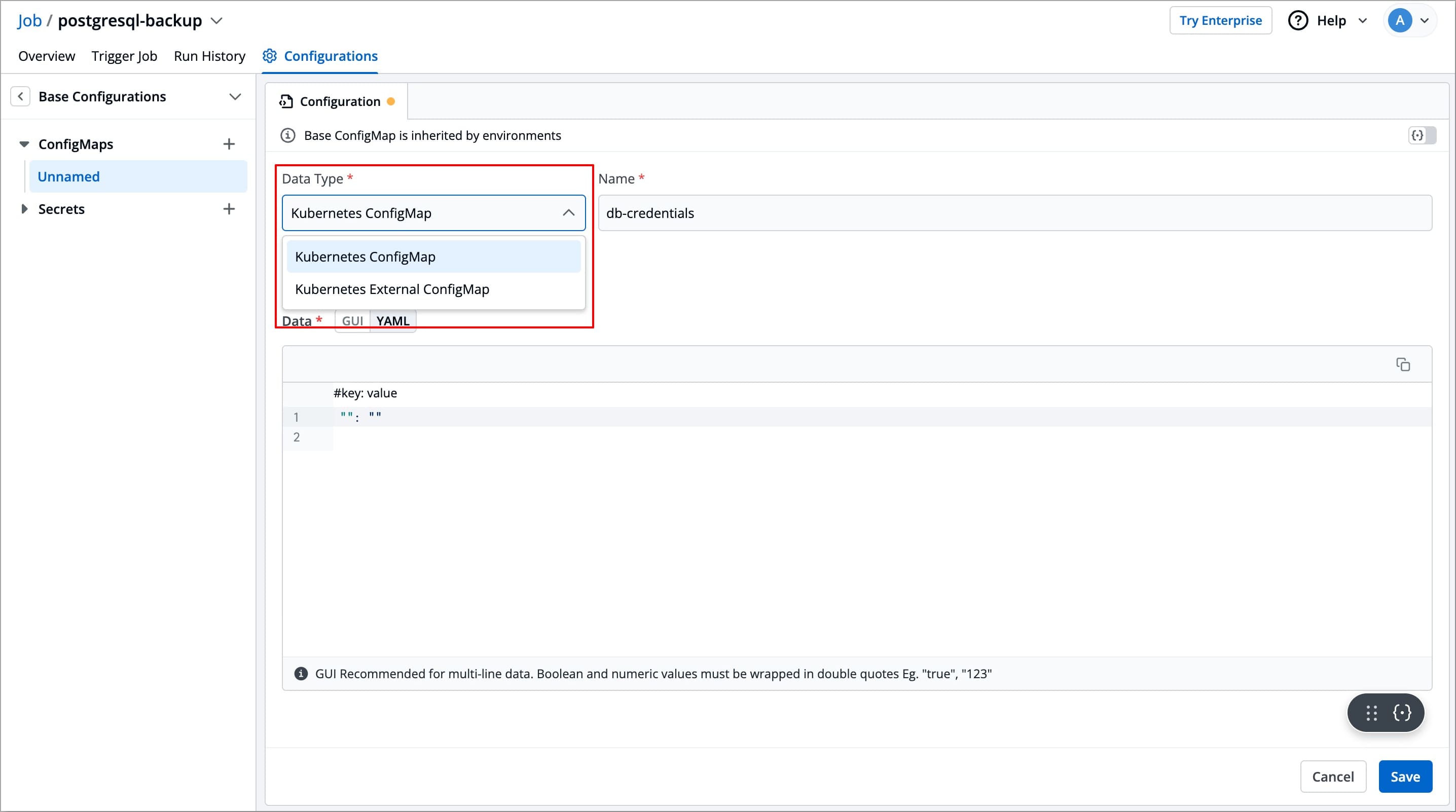

+4. **Data Type** - Choose between the following data types:
+
+    * **Kubernetes ConfigMap**: Select the Data Type as Kubernetes ConfigMap, if you wish to create and use the ConfigMap using Devtron.
+
+    * **Kubernetes External ConfigMap**: Select the Data Type as Kubernetes External ConfigMap if you have already created a ConfigMap using the kubectl command and want to use that in Devtron.
+
+    ![Figure 4: ConfigMap Data Type](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-data-type.jpg)
+

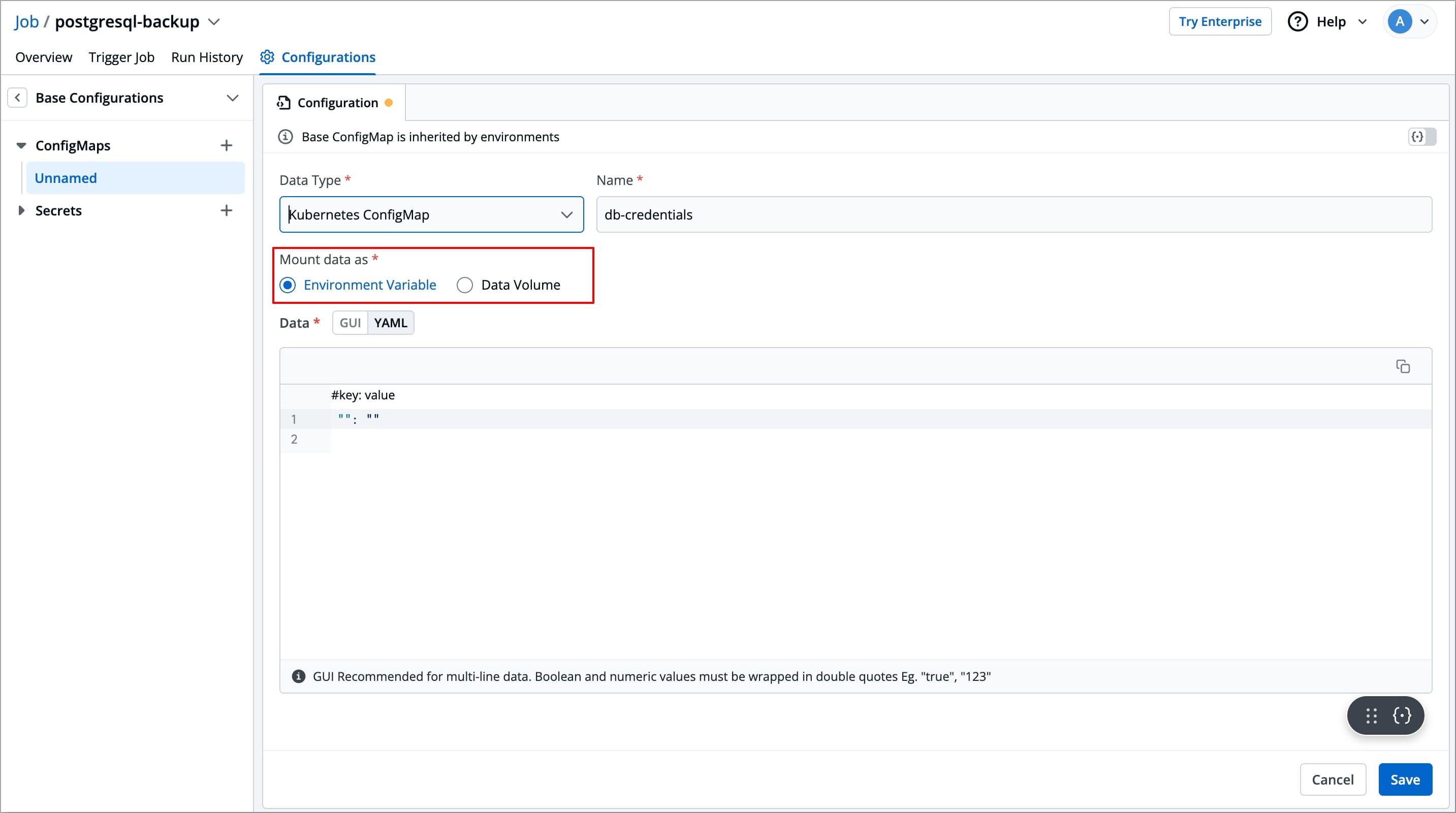

+5. After selecting the data type, you can choose how to mount the data of your ConfigMap. Devtron allows you to mount ConfigMap Data in the following ways: <br><br> **Mount data as** - Select how you want to mount the ConfigMap:
+
+    * [**Environment Variable**](#mount-data-as-environment-variables) – Select this option if you want to inject Environment Variables in pods using ConfigMap.
+
+    * [**Data Volume**](#mount-data-as-data-volume) – Select this option if you want to configure a Data Volume that is accessible to Containers running in a pod and provide a Volume mount path. Go to [Data Volume](#mount-data-as-data-volume) to know more.
+
+    ![Figure 5: Mounting Data as](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-mount-data.jpg)
+
+6. Select **Save** to create a ConfigMap.
+
+### Mount Data as Environment Variables
+
+This will pass your ConfigMap data into your Job pod as environment variables, thus making the configuration values directly accessible by your job.
+
+#### For Kubernetes ConfigMap
+
+If you have selected Data type as `Kubernetes ConfigMap` and mount data as `Environment Variable`, then you also need to enter the required data (key-value pairs) in the **Data** field<br><br>Enter data in:
+

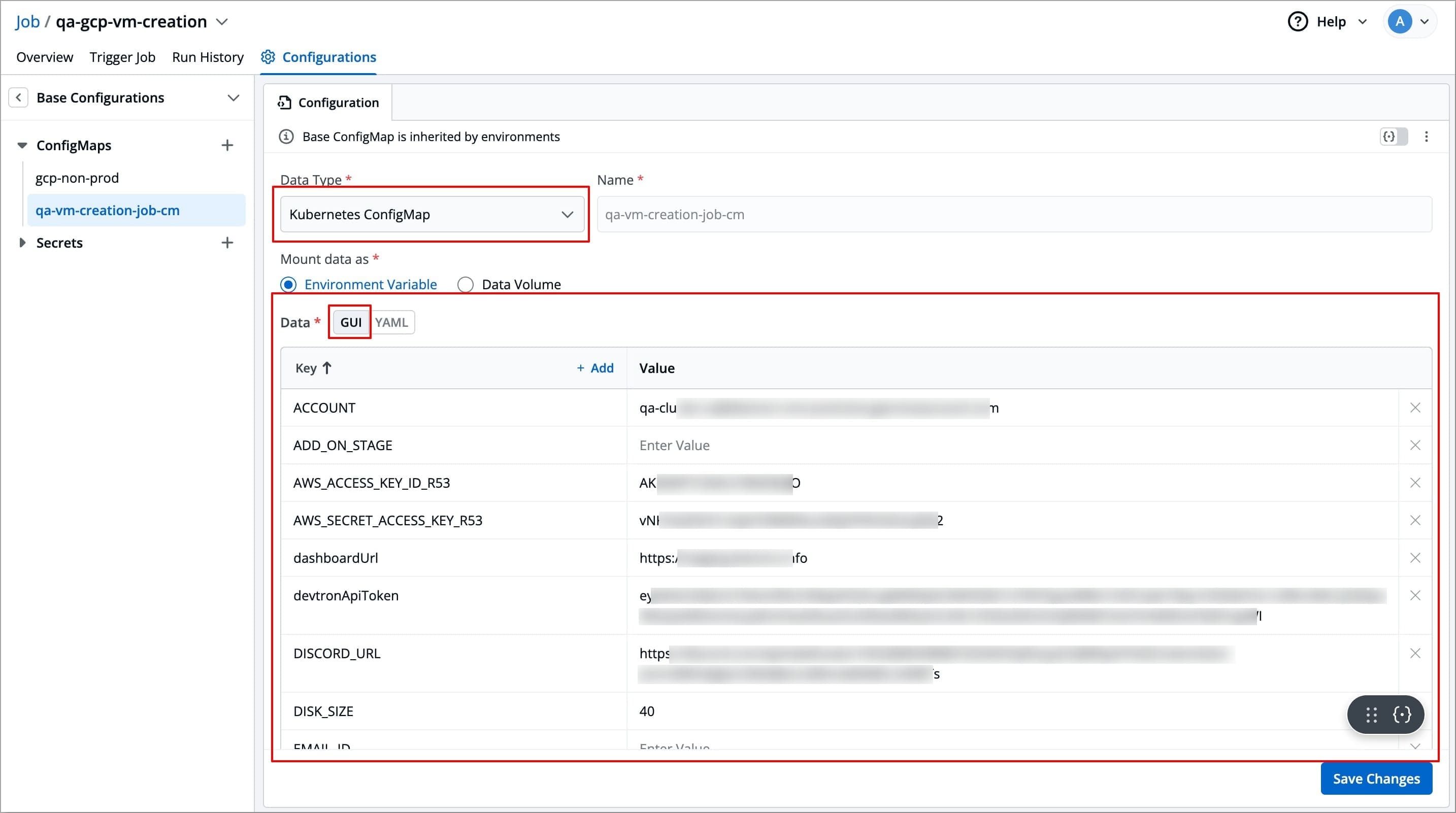

+* **GUI mode** – User-friendly interface. Click the **+Add** button and enter the **Key** and **Value** fields without quotes.
+
+![Figure 6: Entering Data in 'GUI' Mode](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-env-var-gui.jpg)
+

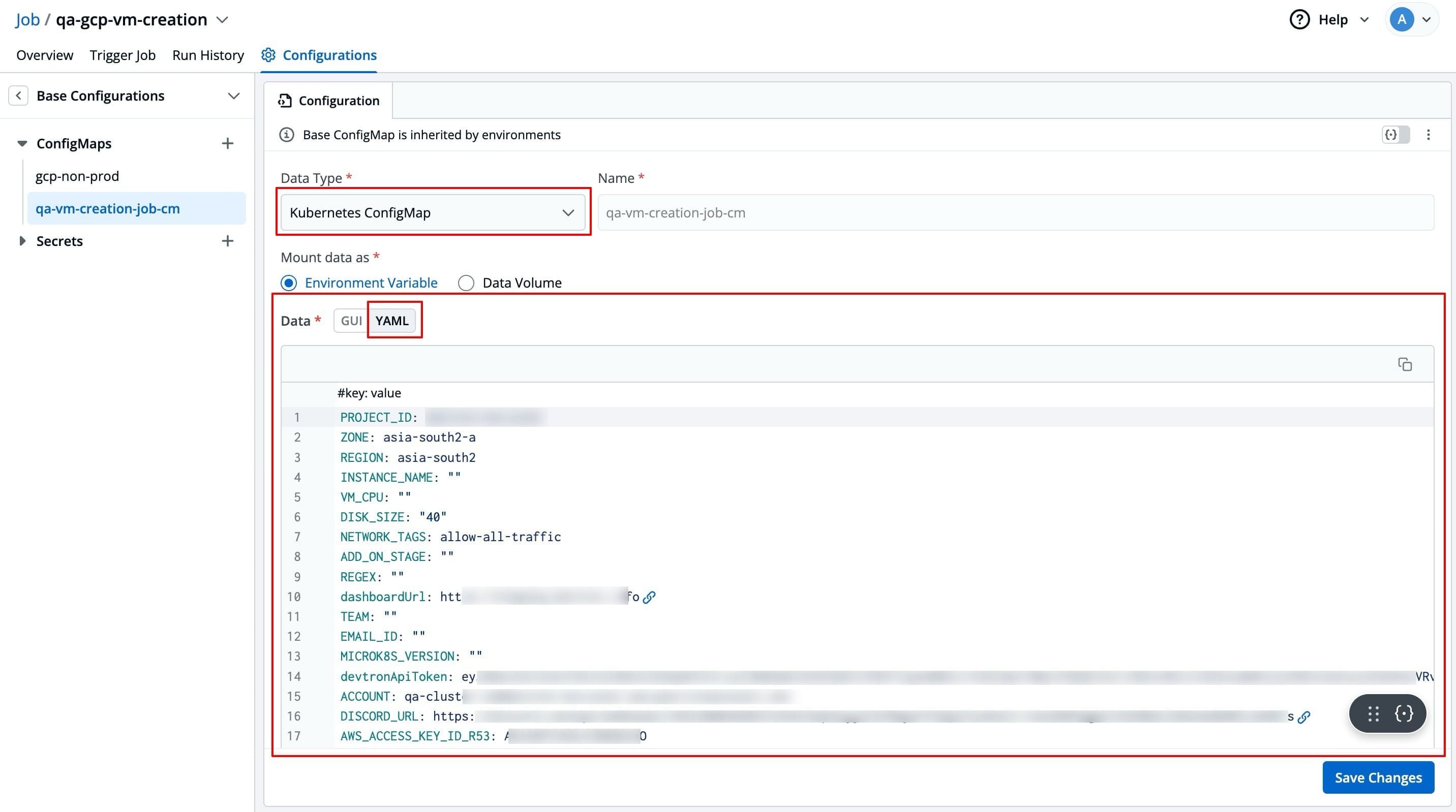

+* **YAML mode** – Raw YAML for entering key-value pairs in the format **`key: value`**. Boolean and numeric values must be wrapped in double quotes.
+
+![Figure 7: Entering Data in 'YAML' Mode](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-env-var-yaml.jpg)
+
+#### For Kubernetes External ConfigMap
+
+If you have selected Data type as `Kubernetes External ConfigMap`, then no data is required, as devtron will fetch the external ConfigMap data and use it to create a ConfigMap.
+
+![Figure 8: Kubernetes External ConfigMap for 'Environment Variable'](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-data-external-env.jpg)
+

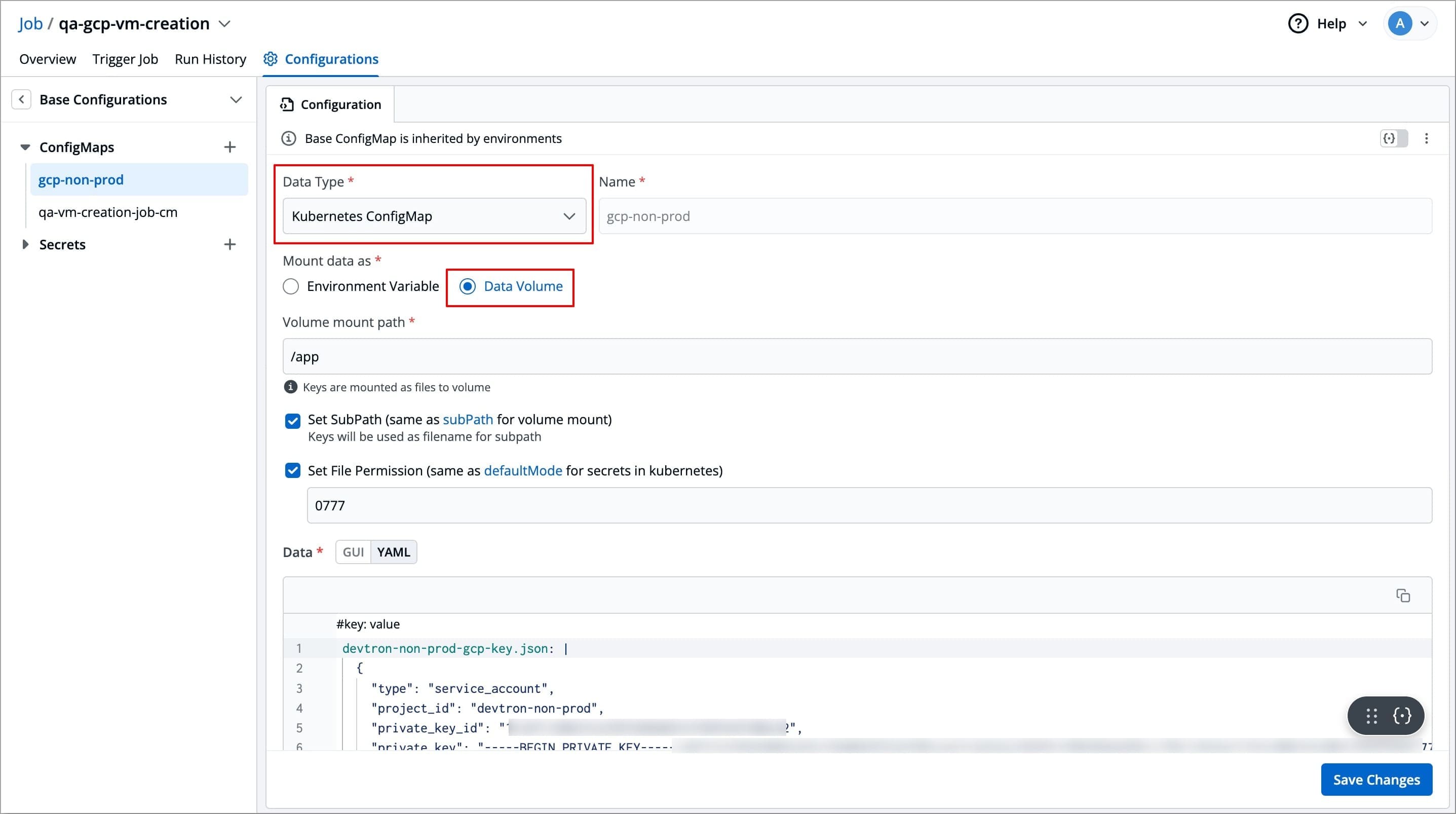

+### Mount Data as Data Volume
+
+This option allows you to create a ConfigMap by passing the content of a file. The content could be plain text, json, yaml, bash script, etc.
+
+![Figure 9: Mounting Data as Data Volume](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-data-vol.jpg)
+
+### Volume Mount Path
+
+Enter the folder path where the data volume should be mounted for it to be accessible to the containers running in a pod. Your keys will be mounted as files to that volume.
+
+![Figure 10: Volume Mount Path](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-data-vol-mount-path.jpg)
+

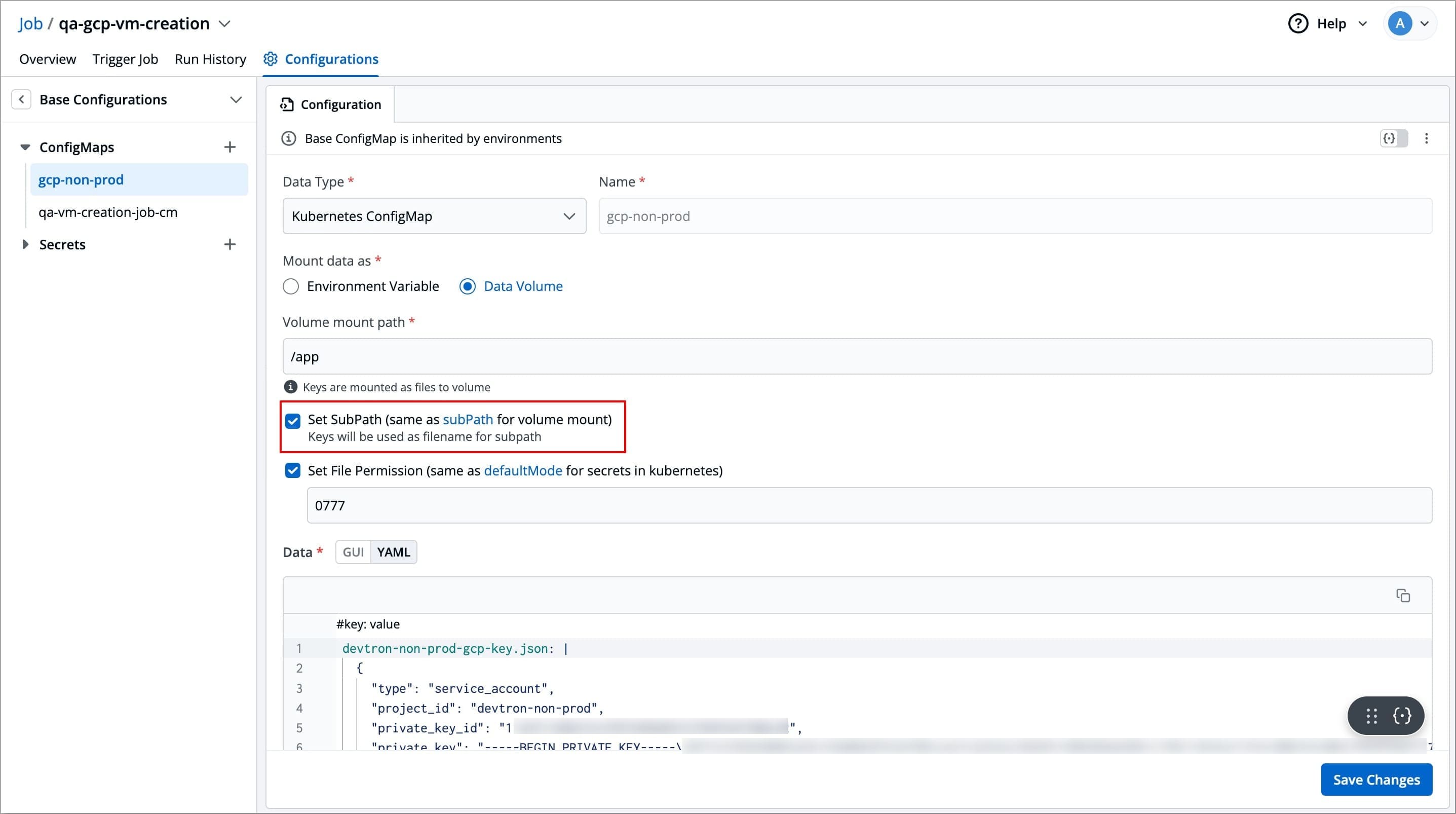

+### Set Sub Path
+
+When mounting multiple files to the same location, you can use the **Set Sub Path** option to control how the files are handled. This setting allows you to control whether existing files are overwritten or preserved when mounting new files.
+
+* If **Set Sub Path** is enabled, the system will preserve existing files in the [specified path](#volume-mount-path) and append the new file using the file name as a sub-path.
+
+* If **Set Sub Path** is disabled (unchecked), the system will delete any files already present in the [specified path](#volume-mount-path) and then mount the new files.
+
+![Figure 11: Setting Sub Path](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-data-vol-set-subpath.jpg)
+
+{% hint style="info" %}
+### Note
+In case of Kubernetes ConfigMap, all keys will be mounted as files on the specified path.
+In case of Kubernetes External ConfigMap, manually specify the keys that should be mounted as files.
+{% endhint %}
+

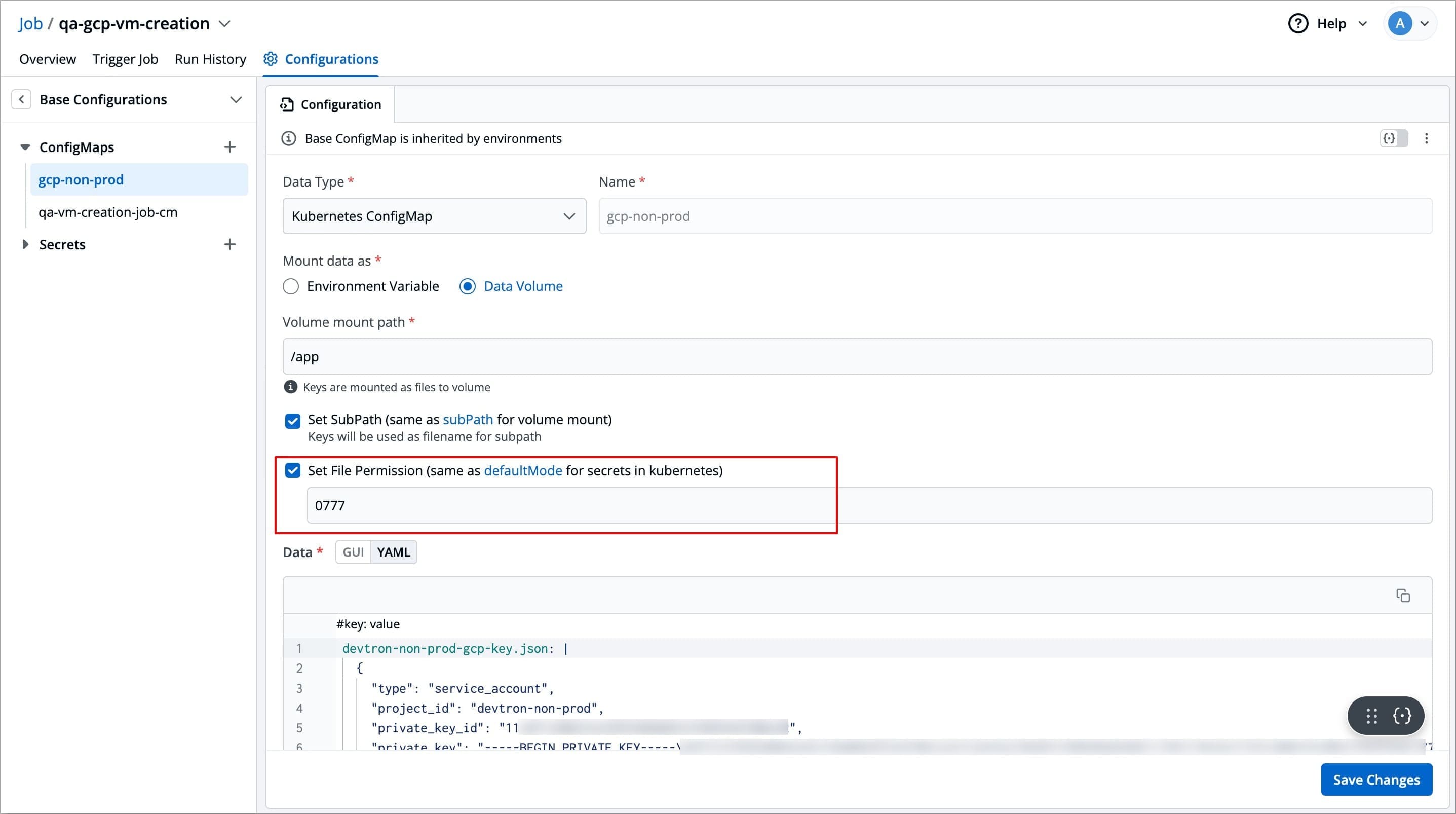

+### Set File Permission
+
+The **Set File Permission** option applies permissions at the ConfigMap level, not to individual keys within the ConfigMap. Enabling this option will let you enter a 3-digit standard permission value to control access to the file.
+
+![Figure 12: Setting File Permission](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-data-vol-set-file-per.jpg)
+
+The 3-digit numeric value represents the permission settings for the file:
+
+* **First digit**: Owner permissions (user).
+* **Second digit**: Group permissions.
+* **Third digit**: Other users' permissions.
+
+| **Permission** | **Description**                                |
+|----------------|------------------------------------------------|
+| **r** (read)   | Grants the ability to read the file.           |
+| **w** (write)  | Grants the ability to modify the file.         |
+| **x** (execute)| Grants the ability to execute the file as a program. |
+
+For example, **755** means:
+* Owner can read, write, and execute (7),
+* Group can read and execute (5),
+* Others can read and execute (5).
+
+### Data
+
+#### For Kubernetes ConfigMap
+
+If you have selected Data type as `Kubernetes ConfigMap` and mount data as `Data Volume`, then you also need to enter the required data (key-value pairs) in the **Data** field.
+
+The key of the ConfigMap should be your filename, and the value of the ConfigMap should be your file content. In the below example, your `file.json` is the key, and the JSON content is the value of that ConfigMap (below the pipe (**|**) symbol). This file will be created on your specified [volume mount path](#volume-mount-path).
+
+Enter data in:
+

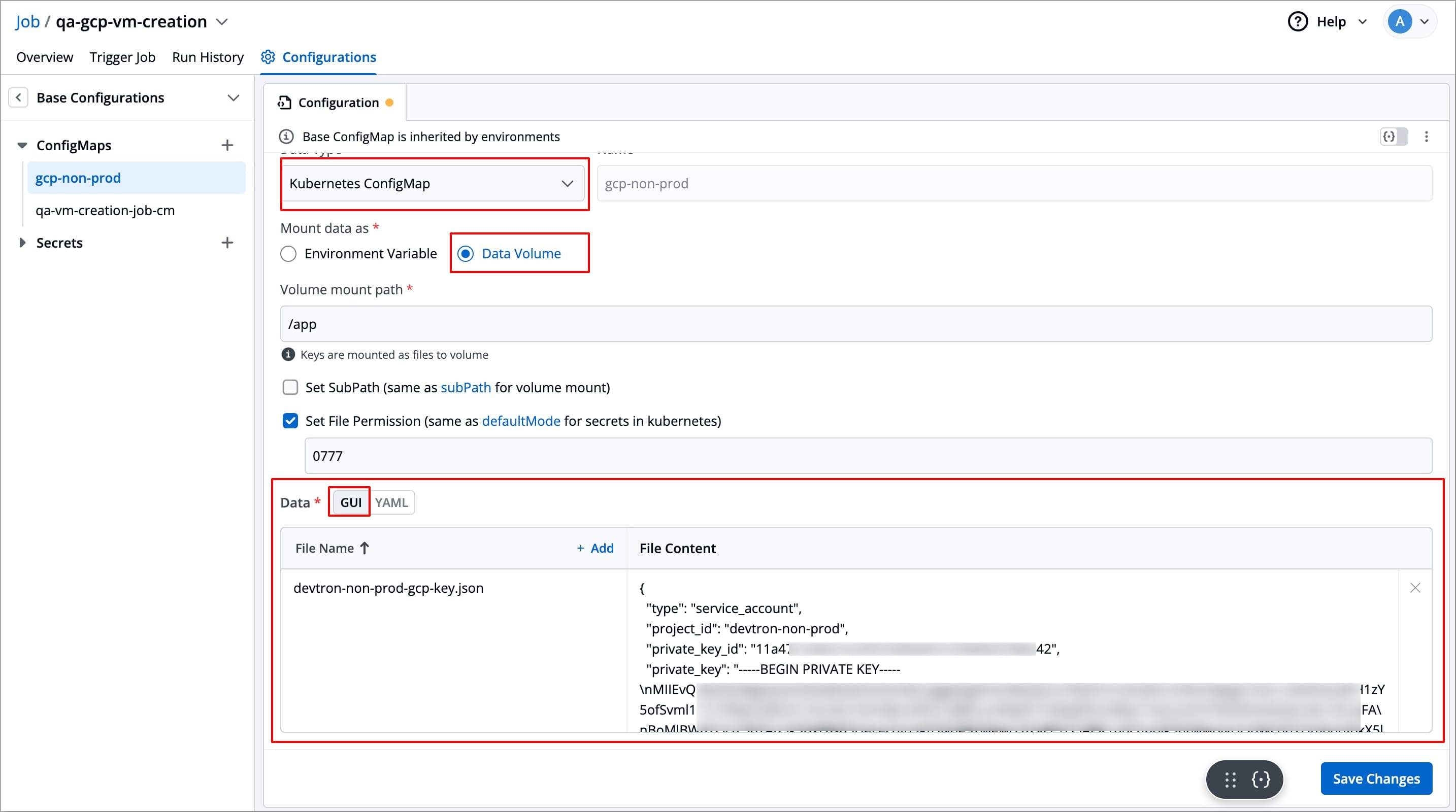

+* **GUI mode** – User-friendly interface. Click the **+Add** button and enter the **Key** and **Value** fields without quotes.
+
+![Figure 13: Entering Data in 'GUI' Mode](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-data-vol-gui.jpg)
+

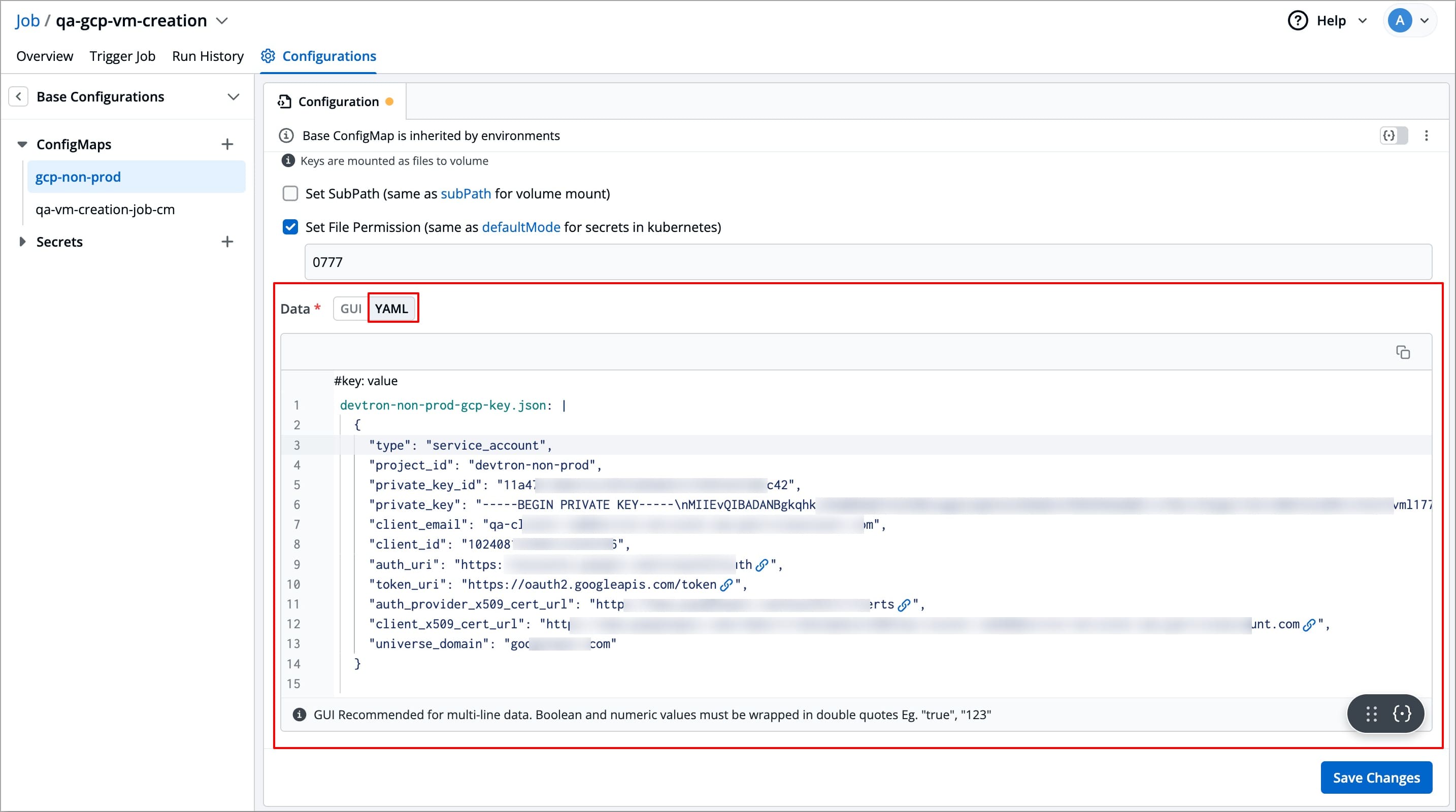

+* **YAML mode** – Raw YAML for entering key-value pairs in the format **`key: value`**. Boolean and numeric values must be wrapped in double quotes.
+
+![Figure 14: Entering Data in 'YAML' Mode](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-data-vol-yaml.jpg)
+

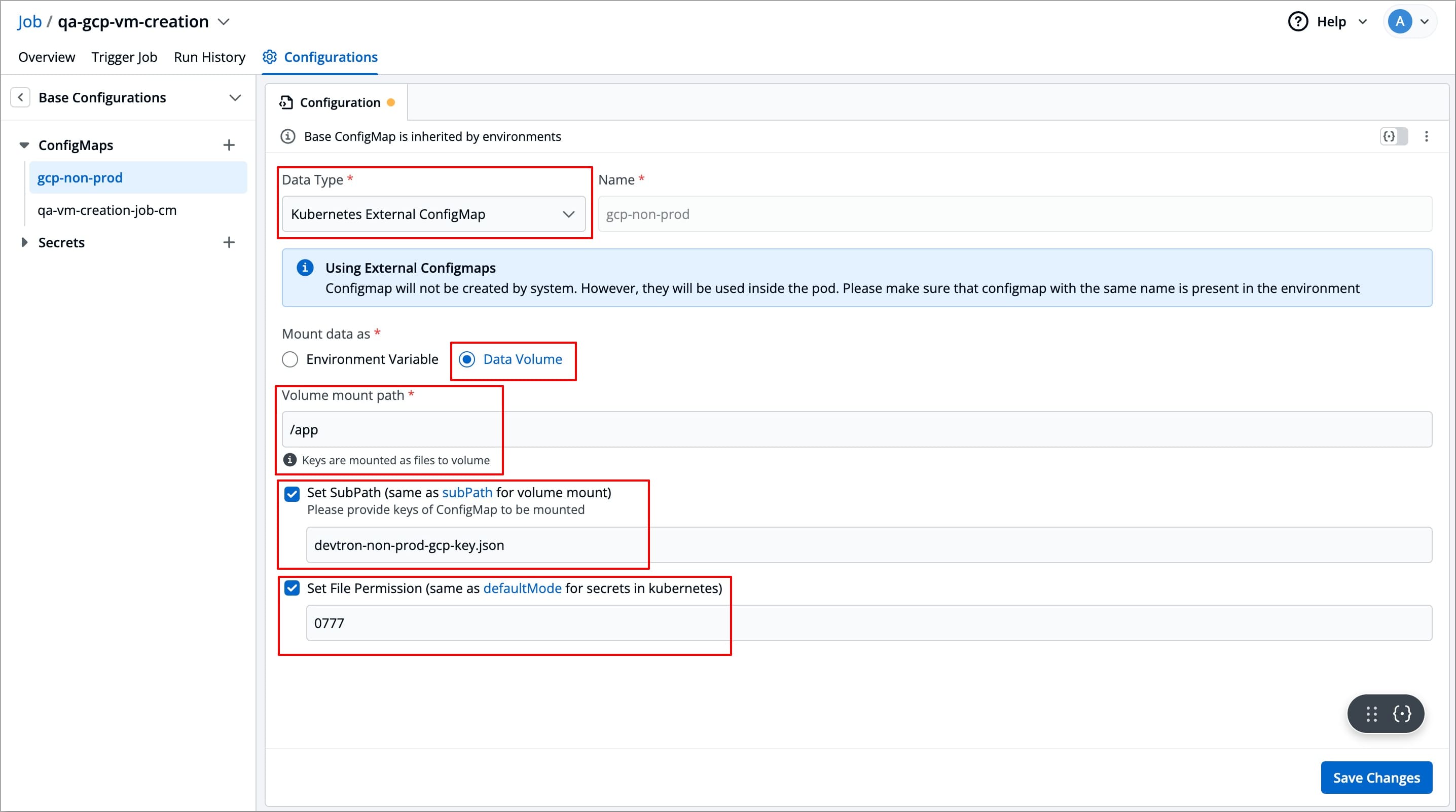

+#### For Kubernetes External ConfigMap
+
+If you have selected Data type as `Kubernetes External ConfigMap`, then no data is required as devtron will fetch the external ConfigMap along with any volumes attach with it and use it to create a ConfigMap.
+
+![Figure 15: Kubernetes External ConfigMap for 'Data Volume'](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-data-external-data-vol.jpg)
+
+---
+
+## Update ConfigMap
+
+{% hint style="warning" %}
+### Who Can Perform This Action?
+Users need to have the **Admin role** or the **Super Admin role**.
+Refer the [User permissions](../../../global-configurations/authorization/user-access.md#roles-available-for-jobs).
+{% endhint %}
+

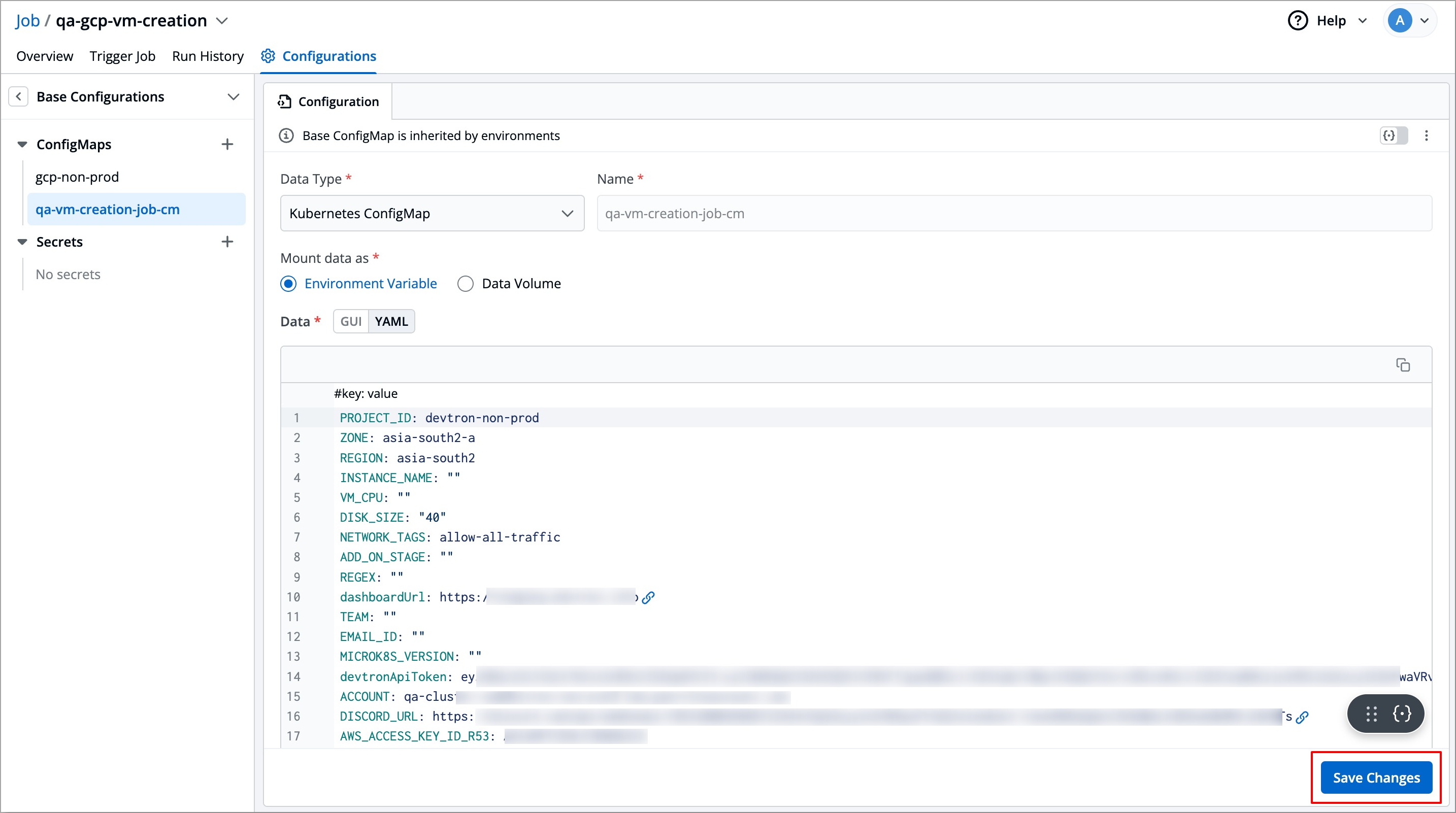

+1. Click your ConfigMap available inside the list of **ConfigMaps** inside **ConfigMaps & Secrets**.
+
+2. Modify its values.
+
+3. Click **Save Changes**.
+
+![Figure 16: Updating ConfigMap](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-update.jpg)
+
+{% hint style="warning" %}
+### Note
+You cannot change the name of a ConfigMap. Create a new ConfigMap instead.
+{% endhint %}
+
+---
+
+## Delete ConfigMap
+
+{% hint style="warning" %}
+### Who Can Perform This Action?
+Users need to have the **Admin role** or the **Super Admin role**.
+Refer the [User permissions](../../../global-configurations/authorization/user-access.md#roles-available-for-jobs).
+{% endhint %}
+

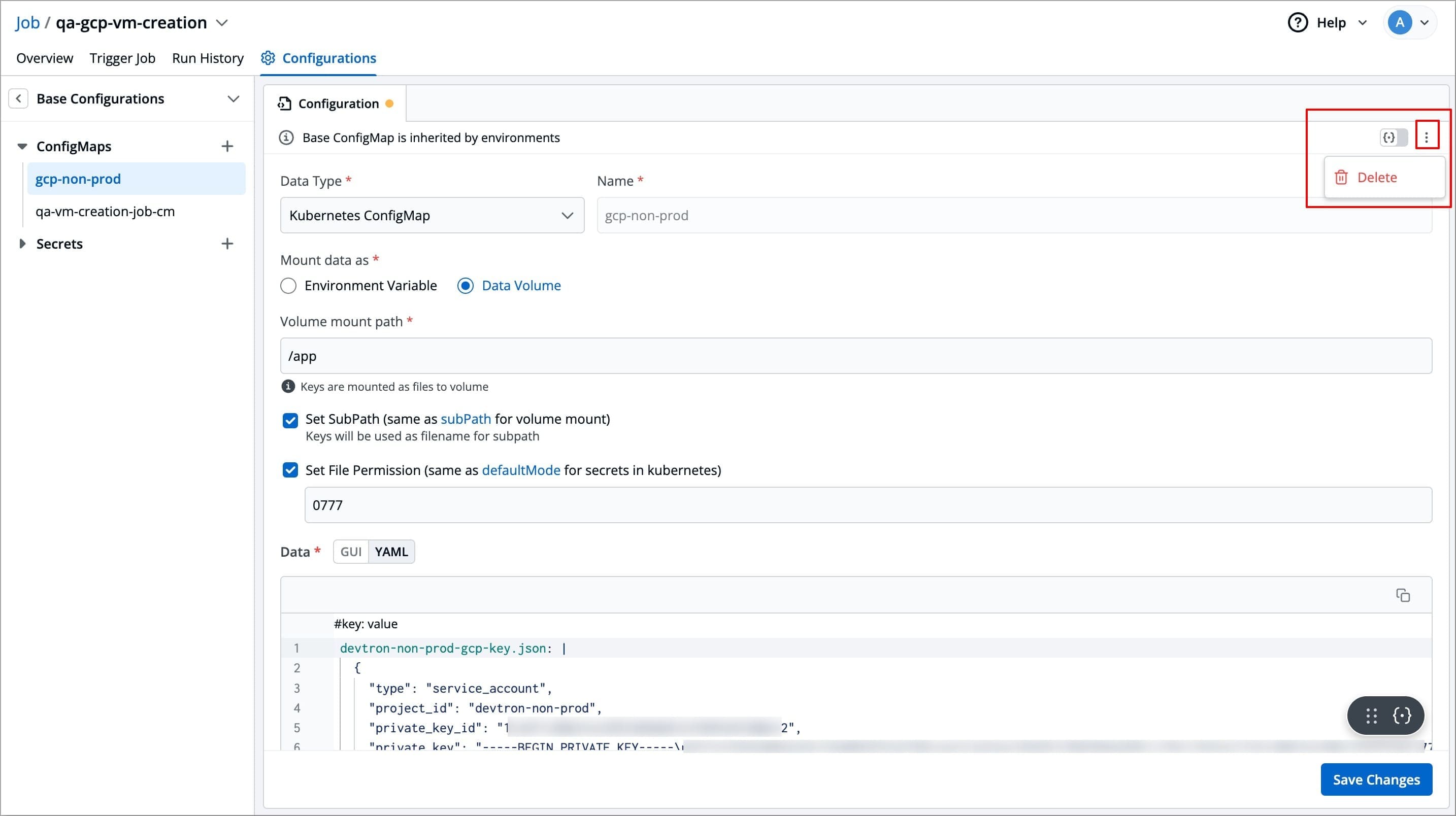

+You may delete a ConfigMap if not in use anymore. Once a ConfigMap is deleted, it will not be used in future deployments.
+
+1. Click your ConfigMap available inside the list of **ConfigMaps** inside **Base Configurations**.
+
+2. On the right side, click the kebab menu (3 vertical dots).
+
+3. Click **Delete**.
+
+4. Confirm the deletion in the dialog box.
+
+![Figure 17: Deleting ConfigMap](https://devtron-public-asset.s3.us-east-2.amazonaws.com/images/create-job/configmap-delete.jpg)
+
+---
+
+After configuring ConfigMaps
+
+* Refer the [Secrets](./secret-job.md) section to configure secrets
+
+* Refer the [Environment Override](../environment-override-job.md) section to configure Environment Overrides.
+
+* Refer the [Trigger Job](../../triggering-job.md) section to trigger the job-pipeline.
