oeShowTool

This is an old project. Please use oeShowTool_III instead

This is an openFrameworks Tool. Please visit http://openframeworks.cc to download it. In case you don't know it: it is very worth checking it out!

The tool will be used for driving shows based on video projection. This is an early alpha version, but already features different screens with mapping/warping and a bezier based mask editor. The screens are connected to input slots (color, image, video), scenes are used to store all settings.

The Tool is based on the following excellent external plugins:

• ofxBezierWarp (https://github.com/gameoverhack/ofxBezierWarp) for mapping/warping
• ofxImGui (https://github.com/jvcleave/ofxImGui) which again is a wrapper for ImGui (https://github.com/ocornut/imgui) fr the GUI
• ofxBezierEditor (https://github.com/acarreras/ofxBezierEditor) for the mask functionality

Thanks a lot to the authors for the incredible work!

Linux

The master branch is the Linux version. There is a windows branch which is even less stable.

TODO:

a lot, most important

• descriptions/help
• error catching
• check multi monitor problems on ubuntu
• add windows version (with gstreamer)

Screenshots

(so that you can see where it goes)

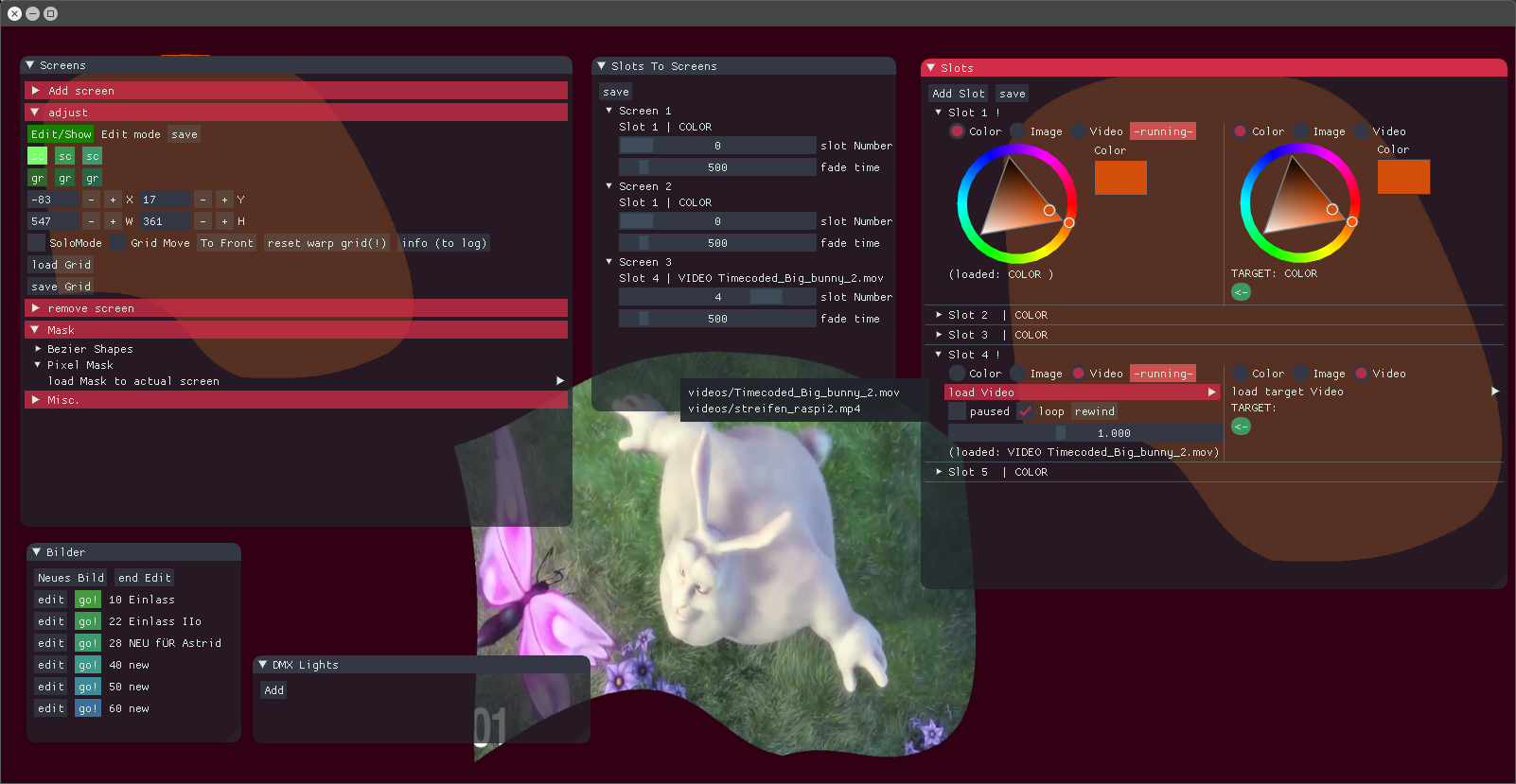

multiple screens (that usuallybe on secon screen/projector probably) and GUI

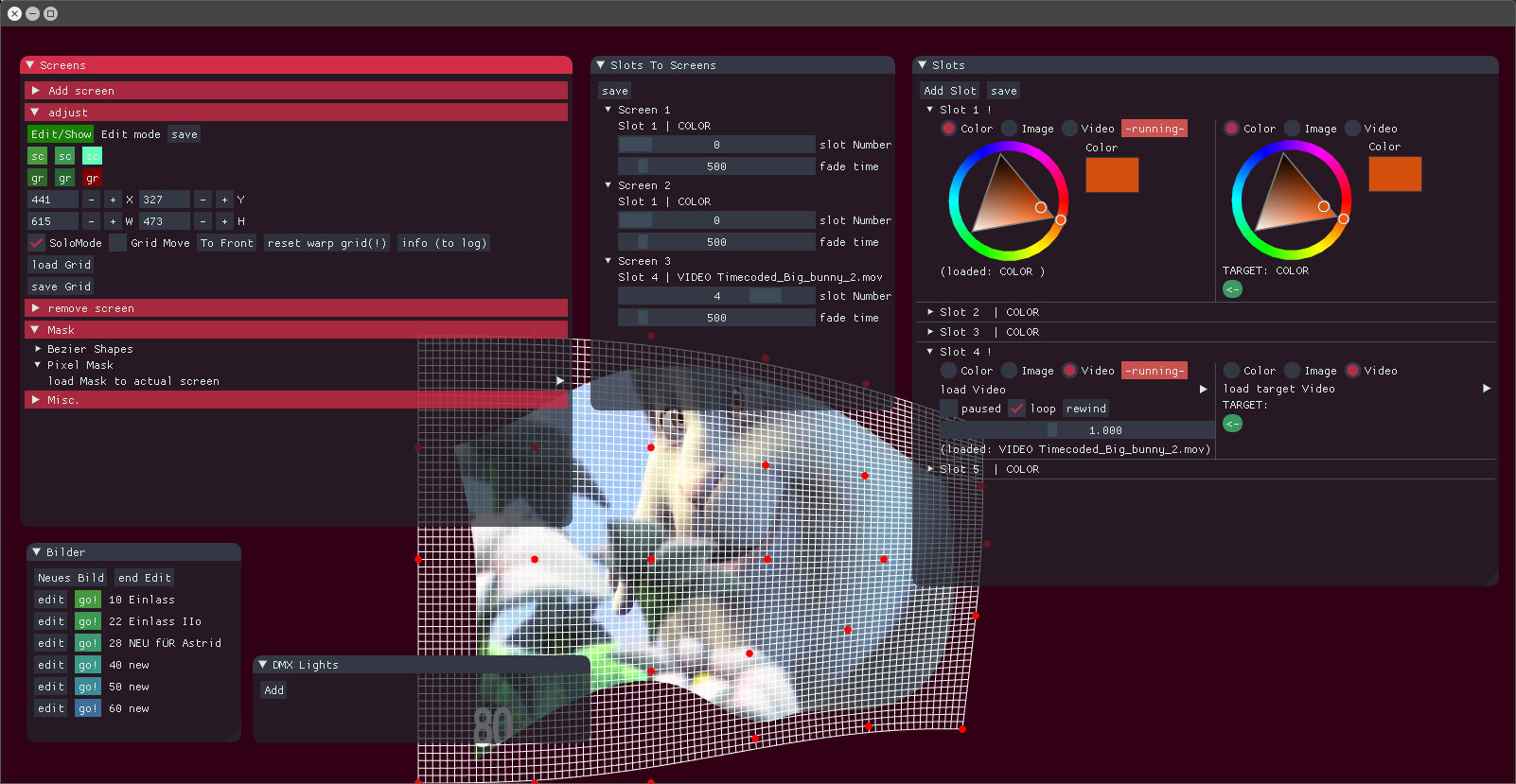

warping a screen

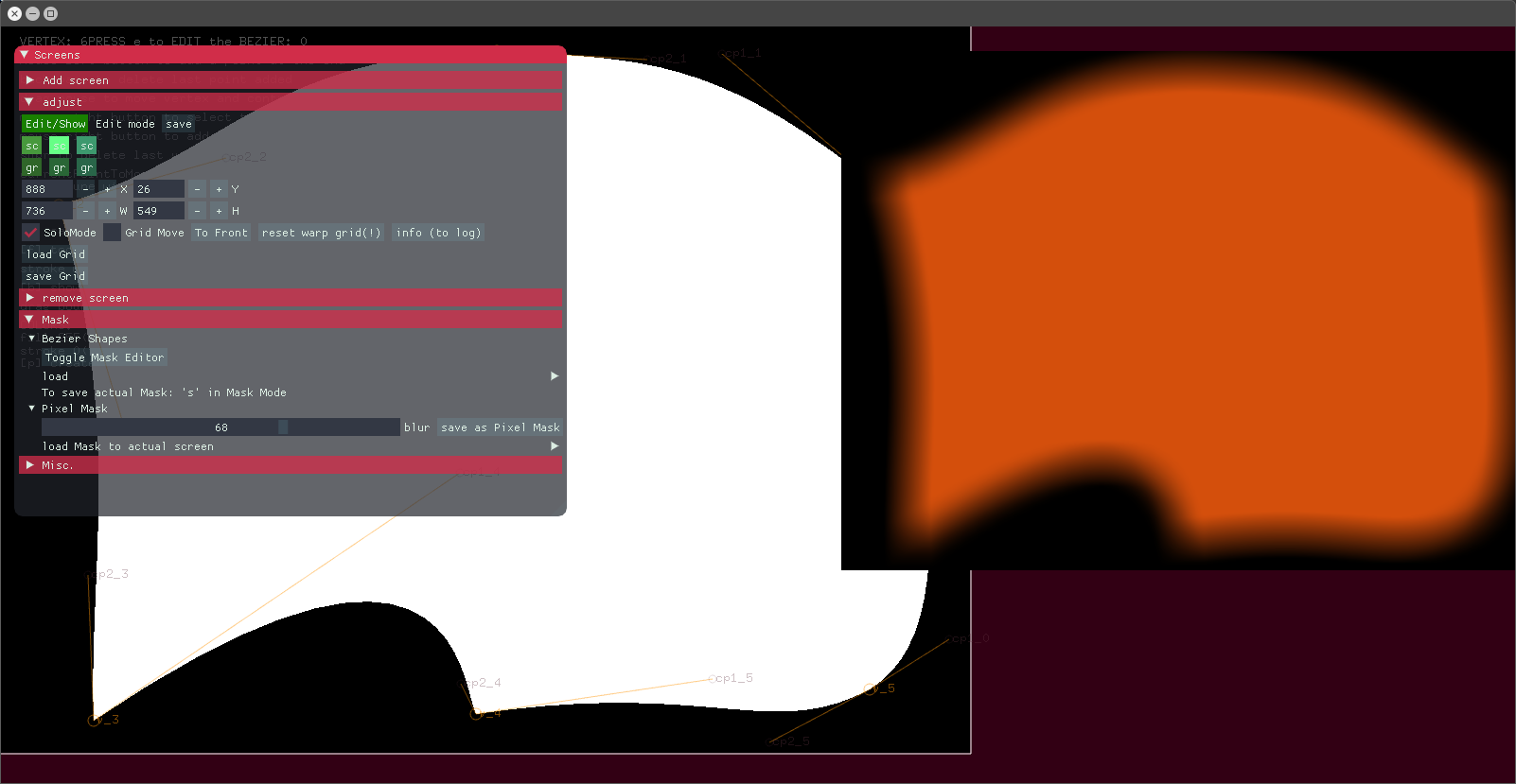

building a mask with changes seen live on screen
