React Kanban Kit

A flexible and customizable Kanban board component for React applications, built with TypeScript and modern drag-and-drop functionality powered by Atlassian's pragmatic-drag-and-drop.

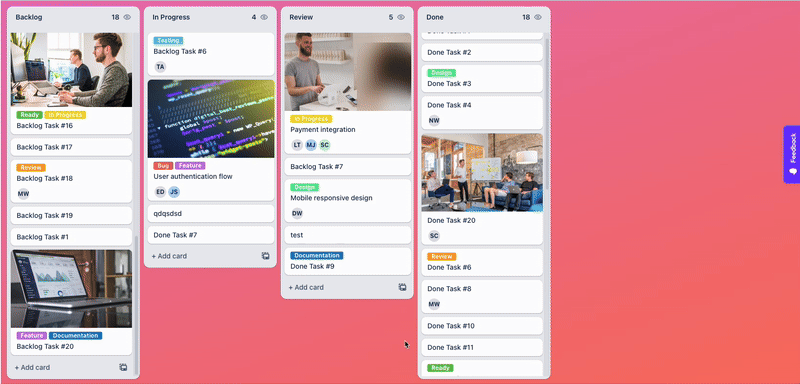

Demo

Check out the live demo: https://react-kanban-kit.netlify.app/

Features

🎯 Drag and Drop: Cards and columns with smooth animations
📱 Responsive Design: Works on desktop, tablet, and mobile
🎨 Highly Customizable: Custom renderers for cards, headers, footers, and more
🔄 Virtual Scrolling: Optimized performance for large datasets
📦 TypeScript Support: Full type safety and IntelliSense
🎮 View-Only Mode: Disable interactions when needed
🎯 Skeleton Loading: Built-in loading states with animations
🎨 Custom Styling: Function-based styling with access to data context
🔥 Modern Architecture: Built with React hooks and clean separation of concerns

Installation

npm install react-kanban-kit
# or
yarn add react-kanban-kit
# or
pnpm add react-kanban-kit

Basic Usage

import { Kanban } from "react-kanban-kit";

const MyKanbanBoard = () => {
  const dataSource = {
    root: {
      id: "root",
      title: "Root",
      children: ["col-1", "col-2", "col-3"],
      totalChildrenCount: 3,
      parentId: null,
    },
    "col-1": {
      id: "col-1",
      title: "To Do",
      children: ["task-1", "task-2"],
      totalChildrenCount: 2,
      parentId: "root",
    },
    "col-2": {
      id: "col-2",
      title: "In Progress",
      children: ["task-3"],
      totalChildrenCount: 1,
      parentId: "root",
    },
    "col-3": {
      id: "col-3",
      title: "Done",
      children: ["task-4"],
      totalChildrenCount: 1,
      parentId: "root",
    },
    "task-1": {
      id: "task-1",
      title: "Design Homepage",
      parentId: "col-1",
      children: [],
      totalChildrenCount: 0,
      type: "card",
      content: {
        description: "Create wireframes and mockups for the homepage",
        priority: "high",
      },
    },
    "task-2": {
      id: "task-2",
      title: "Setup Database",
      parentId: "col-1",
      children: [],
      totalChildrenCount: 0,
      type: "card",
    },
    // ... more tasks
  };

  const configMap = {
    card: {
      render: ({ data, column, index, isDraggable }) => (
        <div className="kanban-card">
          <h3>{data.title}</h3>
          {data.content?.description && <p>{data.content.description}</p>}
          <div className="card-meta">
            {data.content?.priority && (
              <span className={`priority ${data.content.priority}`}>
                {data.content.priority}
              </span>
            )}
          </div>
        </div>
      ),
      isDraggable: true,
    },
  };

  return (
    <Kanban
      dataSource={dataSource}
      configMap={configMap}
      onCardMove={(move) => {
        console.log("Card moved:", move);
        // Handle card movement
      }}
      onColumnMove={(move) => {
        console.log("Column moved:", move);
        // Handle column reordering
      }}
    />
  );
};

Advanced Usage

Custom Card Types and Renderers

const configMap = {
  card: {
    render: ({ data, column, index, isDraggable }) => (
      <div className="task-card">
        <h4>{data.title}</h4>
        <p>{data.content?.description}</p>
        <div className="card-footer">
          <span className="assignee">{data.content?.assignee}</span>
          <span className="due-date">{data.content?.dueDate}</span>
        </div>
      </div>
    ),
    isDraggable: true,
  },

  divider: {
    render: ({ data }) => (
      <div className="divider">
        <hr />
        <span>{data.title}</span>
      </div>
    ),
    isDraggable: false,
  },

  footer: {
    render: ({ data, column }) => (
      <button className="add-card-btn">+ Add card to {column.title}</button>
    ),
    isDraggable: false,
  },
};

Custom Column Headers and Footers

<Kanban
  dataSource={dataSource}
  configMap={configMap}
  renderColumnHeader={(column) => (
    <div className="custom-header">
      <h3>{column.title}</h3>
      <span className="count">{column.totalChildrenCount}</span>
      <button className="column-menu">⋯</button>
    </div>
  )}
  renderColumnFooter={(column) => (
    <div className="column-footer">
      <button>Add New Card</button>
    </div>
  )}
  // Column adder
  allowColumnAdder={true}
  renderColumnAdder={() => (
    <button className="add-column-btn">+ Add Column</button>
  )}
  // List footer (shown at bottom of each column)
  allowListFooter={(column) => column.id !== "done"}
  renderListFooter={(column) => (
    <div className="list-footer">
      <button>+ Add another card</button>
    </div>
  )}
/>

Drag and Drop Customization

<Kanban
  // Custom drag previews
  renderCardDragPreview={(card, info) => (
    <div className="drag-preview">
      <h4>{card.title}</h4>
      <span>Moving to...</span>
    </div>
  )}
  renderCardDragIndicator={(card, info) => (
    <div className="drop-indicator" style={{ height: info.height }} />
  )}
  // DND state change callbacks
  onCardDndStateChange={(info) => {
    console.log("Card DND state:", info.state.type);
    if (info.state.type === "is-dragging") {
      // Card is being dragged
    }
  }}
  onColumnDndStateChange={(info) => {
    console.log("Column DND state:", info.state.type);
    if (info.state.type === "is-card-over") {
      // Card is being dragged over this column
    }
  }}
/>

Advanced Styling and Customization

<Kanban
  // Root container styling
  rootClassName="my-kanban-board"
  rootStyle={{ backgroundColor: "#f5f5f5", padding: "20px" }}
  // Column styling (functions get access to column data)
  columnWrapperStyle={(column) => ({
    backgroundColor: column.id === "urgent" ? "#ffe6e6" : "#ffffff",
    border: `2px solid ${column.content?.color || "#ddd"}`,
  })}
  columnWrapperClassName={(column) =>
    `column-wrapper ${column.content?.theme || "default"}`
  }
  columnHeaderStyle={(column) => ({
    backgroundColor: column.content?.headerColor || "#f8f9fa",
    color: column.content?.textColor || "#333",
  })}
  columnStyle={(column) => ({
    minHeight: column.totalChildrenCount > 10 ? "800px" : "400px",
  })}
  columnClassName={(column) =>
    column.totalChildrenCount === 0 ? "empty-column" : "has-items"
  }
  // Card styling
  cardWrapperStyle={(card, column) => ({
    marginBottom: "8px",
    opacity: card.content?.archived ? 0.5 : 1,
  })}
  cardWrapperClassName="custom-card-wrapper"
  cardsGap={12} // Gap between cards in pixels
  // Column list content styling
  columnListContentStyle={(column) => ({
    padding: column.totalChildrenCount === 0 ? "40px 16px" : "8px",
  })}
  columnListContentClassName={(column) =>
    `column-content ${column.totalChildrenCount === 0 ? "empty" : "filled"}`
  }
/>

Loading States and Virtualization

<Kanban
  dataSource={dataSource}
  configMap={configMap}
  // Custom skeleton loading
  renderSkeletonCard={({ index, column }) => (
    <div className="skeleton-card">
      <div className="skeleton-title"></div>
      <div className="skeleton-content"></div>
      <div className="skeleton-footer"></div>
    </div>
  )}
  // Virtual scrolling (default: true)
  virtualization={true}
  // Load more functionality
  loadMore={(columnId) => {
    console.log(`Loading more items for column: ${columnId}`);
    // Fetch and add more items
  }}
  // Scroll event handling
  onScroll={(event, column) => {
    const { scrollTop, scrollHeight, clientHeight } = event.target;
    const isNearBottom = scrollTop + clientHeight >= scrollHeight - 100;

    if (isNearBottom) {
      // Load more items when near bottom
      loadMore?.(column.id);
    }
  }}
/>

View-Only Mode

<Kanban
  dataSource={dataSource}
  configMap={configMap}
  viewOnly={true} // Disables all drag and drop interactions
/>

Props Reference

Core Props

Prop	Type	Description
`dataSource`	`BoardData`	Required. The data structure for the board
`configMap`	`ConfigMap`	Required. Configuration for different card types
`viewOnly`	`boolean`	Disable all drag and drop interactions

Data Loading

Prop	Type	Description
`loadMore`	`(columnId: string) => void`	Load more items for a column
`renderSkeletonCard`	`({ index, column }) => ReactNode`	Custom skeleton loader

Drag and Drop Events

Prop	Type	Description
`onCardMove`	`(move: CardMove) => void`	Fired when a card is moved
`onColumnMove`	`(move: ColumnMove) => void`	Fired when a column is reordered
`onCardDndStateChange`	`(info: DndState) => void`	Card drag state changes
`onColumnDndStateChange`	`(info: DndState) => void`	Column drag state changes

Drag and Drop Customization

Prop	Type	Description
`renderCardDragPreview`	`(card, info) => ReactNode`	Custom card drag preview
`renderCardDragIndicator`	`(card, info) => ReactNode`	Custom drop indicator

Column Customization

Prop	Type	Description
`renderColumnHeader`	`(column: BoardItem) => ReactNode`	Custom column header
`renderColumnFooter`	`(column: BoardItem) => ReactNode`	Custom column footer
`renderColumnWrapper`	`(column, props) => ReactNode`	Wrap entire column
`allowColumnAdder`	`boolean`	Show add column button
`renderColumnAdder`	`() => ReactNode`	Custom add column button
`renderListFooter`	`(column: BoardItem) => ReactNode`	Footer at bottom of card list
`allowListFooter`	`(column: BoardItem) => boolean`	Show list footer per column

Styling Props (Functions)

Prop	Type	Description
`columnWrapperStyle`	`(column: BoardItem) => CSSProperties`	Column wrapper styles
`columnHeaderStyle`	`(column: BoardItem) => CSSProperties`	Column header styles
`columnStyle`	`(column: BoardItem) => CSSProperties`	Column inner styles
`columnListContentStyle`	`(column: BoardItem) => CSSProperties`	Column content area styles
`cardWrapperStyle`	`(card, column) => CSSProperties`	Card wrapper styles

Styling Props (Class Names)

Prop	Type	Description
`rootClassName`	`string`	Root container class
`columnWrapperClassName`	`(column: BoardItem) => string`	Column wrapper class
`columnHeaderClassName`	`(column: BoardItem) => string`	Column header class
`columnClassName`	`(column: BoardItem) => string`	Column inner class
`columnListContentClassName`	`(column: BoardItem) => string`	Column content class
`cardWrapperClassName`	`string`	Card wrapper class

Performance & Behavior

Prop	Type	Description
`virtualization`	`boolean`	Enable virtual scrolling (default: true)
`cardsGap`	`number`	Gap between cards in pixels

Event Handlers

Prop	Type	Description
`onColumnClick`	`(e, column) => void`	Column click handler
`onCardClick`	`(e, card) => void`	Card click handler
`onScroll`	`(e, column) => void`	Column scroll handler

Data Structure

BoardData

interface BoardData {
  root: BoardItem;
  [key: string]: BoardItem;
}

interface BoardItem {
  id: string;
  title: string;
  parentId: string | null;
  children: string[];
  content?: any; // Your custom data
  type?: keyof ConfigMap; // Card type
  totalChildrenCount: number;
  isDraggable?: boolean;
}

ConfigMap

type ConfigMap = {
  [type: string]: {
    render: (props: CardRenderProps) => React.ReactNode;
    isDraggable?: boolean;
  };
};

type CardRenderProps = {
  data: BoardItem;
  column: BoardItem;
  index: number;
  isDraggable: boolean;
};

Event Types

CardMove Event

interface CardMove {
  cardId: string;
  fromColumnId: string;
  toColumnId: string;
  taskAbove: string | null;
  taskBelow: string | null;
  position: number;
}

ColumnMove Event

interface ColumnMove {
  columnId: string;
  fromIndex: number;
  toIndex: number;
}

CSS Classes

The component provides CSS classes you can style:

/* Root container */
.rkk-board {
}

/* Column wrapper */
.rkk-column-outer {
}

/* Column inner container */
.rkk-column {
}

/* Column wrapper */
.rkk-column-wrapper {
}

/* Column header */
.rkk-column-header {
}

/* Column content area */
.rkk-column-content {
}

/* Column content list */
.rkk-column-content-list {
}

/* Card wrapper */
.rkk-generic-item-wrapper {
}

/* Card outer container */
.rkk-card-outer {
}

/* Card inner container */
.rkk-card-inner {
}

/* Drop shadow indicator */
.rkk-card-shadow {
}

/* Skeleton loading */
.rkk-skeleton {
}

TypeScript Support

This package is built with TypeScript and provides full type definitions. Import types as needed:

import {
  BoardData,
  BoardItem,
  ConfigMap,
  CardRenderProps,
  BoardProps,
} from "react-kanban-kit";

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

Name		Name	Last commit message	Last commit date
Latest commit History 47 Commits
assets		assets
public		public
rkk-demo		rkk-demo
scripts		scripts
src		src
.gitignore		.gitignore
Dockerfile		Dockerfile
LICENSE		LICENSE
Makefile		Makefile
README.md		README.md
build.sh		build.sh
docker-compose.yml		docker-compose.yml
index.html		index.html
nginx.conf		nginx.conf
package-lock.json		package-lock.json
package.json		package.json
tsconfig.json		tsconfig.json
tsconfig.node.json		tsconfig.node.json
vite.config.ts		vite.config.ts

License

braiekhazem/react-kanban-kit

Folders and files

Latest commit

History

Repository files navigation

React Kanban Kit

Demo

Features

Installation

Basic Usage

Advanced Usage

Custom Card Types and Renderers

Custom Column Headers and Footers

Drag and Drop Customization

Advanced Styling and Customization

Loading States and Virtualization

View-Only Mode

Props Reference

Core Props

Data Loading

Drag and Drop Events

Drag and Drop Customization

Column Customization

Styling Props (Functions)

Styling Props (Class Names)

Performance & Behavior

Event Handlers

Data Structure

BoardData

ConfigMap

Event Types

CardMove Event

ColumnMove Event

CSS Classes

TypeScript Support

Contributing

License

About

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases 1

Packages 0

Languages

Packages
