Api and DB Server Setup

---

Windows server host the DB and the api. The api serves and receives json as an input parameter.

Here is an example fiddler call to the live api

POST https://live.api.raftcarinthia.com/0.0.1/web/user/login HTTP/1.1
User-Agent: Fiddler
content-type: application/json
client-token: 4CA19E2D-AFA4-407E-BC5C-9BBE58841919
Host: live.api.raftcarinthia.com
Content-Length: 43

{
"email":"[email protected]",
"pwd":"adf"
}

Note the client-token this is the security token which is in the settings table of the DB and is required for api access.

Connecting to the live windows API/DB machine machine

---

Windows server RDP connection server: ufostartapiff.cloudapp.net user: Jens pwd: UfoStart2013.

open SQL management studio connect to feuerbach instance user: Jens pwd: UfoStart2013. Db: ufo_live

Setting up the Database and API

Create a new window vm from the UfoStartFF. Make sure you open port 443 for ssl

When it is finished creating click on dashboard and click connect then rdp with the user you have created.

Setting up the API

look in c:/IISCreateSSSIite.ps1 this script creates the website that runs the api.

import-module webadministration
remove-item IIS:\Sites\UFOStart.Api -recurse
remove-item IIS:\AppPools\UfoStartAppPool -recurse
New-Item IIS:\AppPools\UfoStartAppPool
Set-ItemProperty IIS:\AppPools\UfoStartAppPool managedRuntimeVersion v4.5
New-Item IIS:\Sites\UFOStart.Api -bindings @{protocol="https";bindingInformation=":443:your.api.domain.com} -physicalPath c:\inetpub\wwwroot\
Set-ItemProperty IIS:\Sites\UFOStart.Api -name applicationPool -value UfoStartAppPool

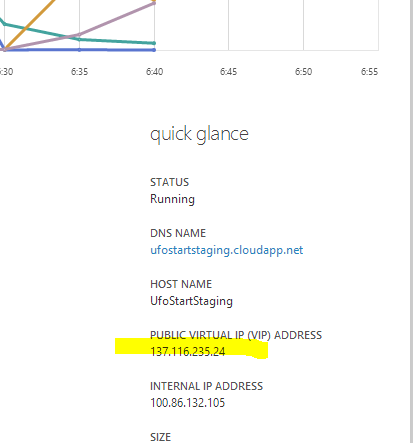

You need to update the your.api.domain.com to the site that your dns provider is using. You can get the public virtual ip address from the new server from azure VM dashboard.

run this powershell script

Then into the server manager/webserver/iissite and find ufostart.api right click and go to edit bindings. find the binding and select edit. Then select the ssl cert with the same name as the new machine and click save. check the ufostart app pool is running version 4.0 and is started.

You should now be able to browse to the url and get a iis default page.

Setting up the Database

First get an up to date backup to restore on the new sql sever. After the restore you need to create the ufo_user with pwd that is configured in UfoStart.Api-->Web.config, and in UFOStart.MailQueue-->App.config (in the respective C# projects). Now we need to sync the user in the backup with the newly created login with exec sp_change_users_login 'Update_One', 'ufo_user', 'ufo_user'

The api should now be able to connect to the DB. The setup the front end to point to the api url

information in the db there is settings table you can only connect to the api if you have the client-token found in the settings table. This goes in the header of the http request.

###Restart mail queue###

If you want to restart mail queue, restart the service as in the screen shot.
