An open-source, on-premise, self-hosted alternative to Cypress dashboard 🌲- Features
- Setup
- Demo & example
- On-premise installation instructions
- Documentation
- Development
- Behind the scenes
- FAQ
- License
- run cypress tests in parallel without any limitation
- upload failure screenshots to S3 bucket
- browse test results, failures and screenshots
- run in light mode w/o persistency or with MongoDB storage attached
- on-premise self-hosted cypress dashboard by design - use your own infrastructure, own your data
- Point Cypress to your service - set
https://sorry-cypress-demo-director.herokuapp.com/asapi_urlof<cypress-root>/packages/server/config/app.yml - Run multiple instances of
cypress run --parallel --record --key xxx --ci-build-id <buildId> - See the the tests running in parallel 🚀

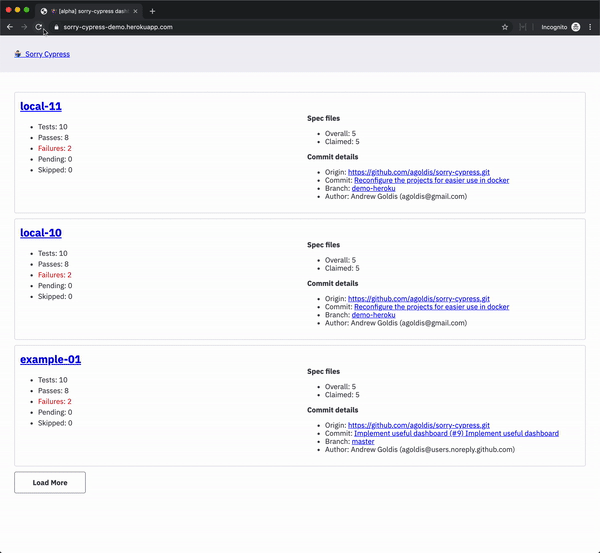

Visit https://sorry-cypress-demo.herokuapp.com/ and see the alpha version of the web dashboard in action.
This demo is a free heroku instance, it takes a minute to spin it up when you first navigate.
You can reconfigure Cypress to use api_url: "https://sorry-cypress-demo-director.herokuapp.com/", run your tests and see the results appear in the dashboard.
Also consider the example with detailed example of parallelization.

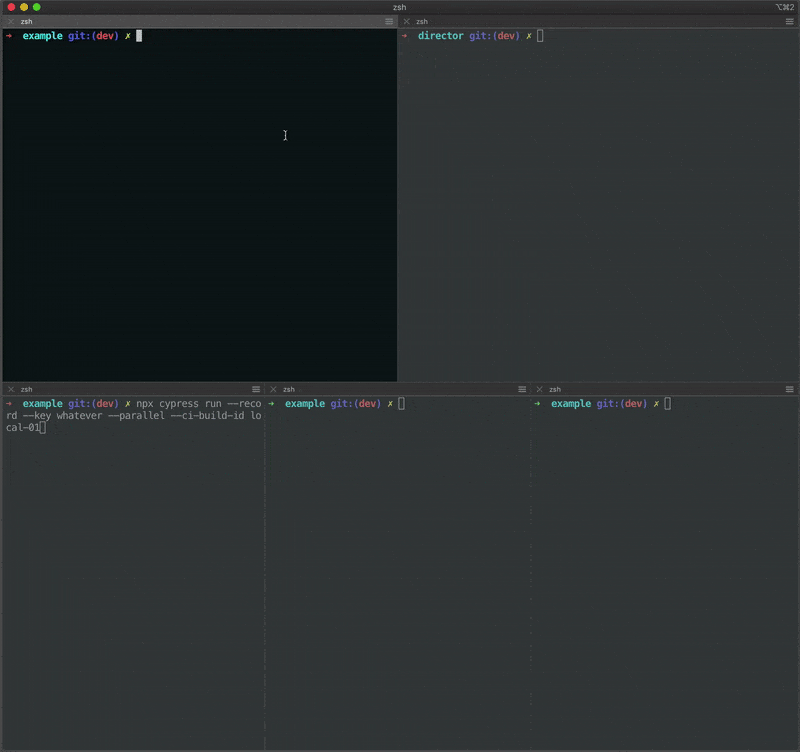

The results of tests from the example app:
Each package has a Dockerfile - use it to build your own images.
Pre-built Docker images are available at https://hub.docker.com/u/agoldis.
Docker image tag corresponds to the git tag, while latest points to the master git branch.
Click the button below to deploy the basic, in-memory configuration of director to Heroku:
If you need help deploying statefull version of the services, please file an issue!
Find cypress installation path
$ DEBUG=cypress:* cypress version
...
# here it is
cypress:cli Reading binary package.json from: /Users/agoldis/Library/Caches/Cypress/3.4.1/Cypress.app/Contents/Resources/app/package.json +0ms
...In my case it is: /Users/agoldis/Library/Caches/Cypress/3.4.1/Cypress.app/Contents/Resources/app/
Change the default dashboard URL
$ cat /Users/agoldis/Library/Caches/Cypress/3.4.1/Cypress.app/Contents/Resources/app/packages/server/config/app.yml
...
# Replace this with a URL of the alternative dashboard
production:
# api_url: "https://api.cypress.io/"
api_url: "http://localhost:1234/"
...The repository consists of 3 packages - you can deploy them on your own infrastructure:
packages/director- is a service that's responsibe for parallelization and saving test resultspackages/api- is a GraphQL server that allows to read test run details and resultspackages/dashboard- is a web dashboard (ReactJS)
The director service is responsible for:
- paralellization and coordination of test runs
- saving tests results
- saving failed tests screenshots
When you launch Cypress on a CI environment with multiple machines, each machine first contacts the dashboard to get the next test to run.
The dashboard coordinates the requests from differents machines and assigns tests to each.
That is what director service does 👆
cd packages/director
npm install
npm run build
npm run start
# ...
Initializing "in-memory" execution driver...
Initializing "dummy" screenshots driver...
Listening on 1234...By default, the service will start on port 1234 with in-memory execution driver and dummy snapshots driver.
That is what running on https://sorry-cypress.herokuapp.com - it is a stateless execution, that just parallelizes tests, but does not persist test results and does not uploads screenshots of failed tests.
The service uses dotenv package - to change the default configuration, create .env file in service's root:
$ pwd
/Users/agoldis/sorry-cypress/packages/director
$ cat .env
PORT=1234
# DASHBOARD_URL is what Cypress client shows as a "Run URL"
DASHBOARD_URL="https://sorry-cypress.herokuapp.com"
# Read more about execution drivers below
EXECUTION_DRIVER="../execution/in-memory"
# Read more about screenshot drivers below
SCREENSHOTS_DRIVER="../screenshots/dummy.driver"The director uses "drivers" that define different aspects of its functionality.
...is what drives the execution flow.
There're 2 "execution drivers" implemented:
Keeps the state of runs in-memory. That means that restarting the service wipes everything.
That's the simplest and most naive implementation.
If you just want to run the tests in parallel and not worry about storing test results.
The state - test runs and results - are persisted in MongoDB, thus, can be queried and displayed in a dashboard.
To enable this driver, set the configuration of .env file:
EXECUTION_DRIVER="../execution/mongo/driver"
MONGODB_URI="monodgb://your-DB-URI"
MONGODB_DATABASE="your-DB-name"
With MongoDB driver you can use the other services - api and dashboard to see the results of your runs.
...is what allows you to save the snapshots of failed tests.
It provides the client (Cypress runner) a URL for uploading the screenshots.
Is the default driver and it does nothing - snapshots won't be saved.
You can set it explicity in .env:
SCREENSHOTS_DRIVER="../screenshots/dummy.driver"
The driver generates upload URLs for S3 bucket. To enable it, set in .env:
SCREENSHOTS_DRIVER="../screenshots/s3.driver"
S3_BUCKET="your_bucket_name"
Please make sure that AWS credentials with proper access to invoke s3.getSignedUrl are available in the environment.
...is a simple GraphQL service, that allows to query the data persisted by MongoDB.
Create a .env file and define MongoDB connection details:
MONGODB_URI='mongodb://mongo:27017'
MONGODB_DATABASE='sorry-cypress'
...is a web dashboard implemented in ReactJS. It is in alpha stage and still very naive - you can explore test details, failures and see screenshots.
In production mode you will need to provide environment variable GRAPHQL_SCHEMA_URL - graphql client will use the URL to download the schema.
E.g. in .env file:
GRAPHQL_SCHEMA_URL=https://sorry-cypress-demo-api.herokuapp.com
You can explore currently available features at https://sorry-cypress-demo.herokuapp.com/.
The project uses yarn workspaces, bootstrap everything by running yarn in the root directory.
Run each package in development mode: yarn dev.
It is recommended to use docker-compose to run the backend services (director and api) and to run the dashboard on host machine.
The project uses docker-compose to conviniently run backend services in dockerized containers.
Run docker-compose build from the project's root directory
Run docker-compose up to start the services.
The latter command will create 3 services:
- MongoDB instance on port
27017 directorservice on port1234apiservice on4000
You can change the configuration using the environment variables defined in docker-compose.yml file.
- Each machine sends the same initial request with:
- specs lists
- machine hardware details
- git commit details
--ci-build-idand other CLI parameters
-
The
directorcreates or fetches an existingrun, based on the parameters and responds with a randomly generatedmachineIdand the allocatedrunId -
Each cypress client requests a next available task for the
runIdwhich was returned previously -
The service looks at the list of specs and returns next available test
Original Cypress dashboard implements different "smart" strategies for picking the next test
- When there're no more available tests for a run, the service sends an "empty" response - client reports that it is finished
The official guide on Cypress parallelization.
I was upset because:
- dashboard crashes and blocks my tests
- parallelization stops working after paid plan has reached its limit
Yes, Cypress is an open source software.
The director service - yes. I have been using https://sorry-cypress.herokuapp.com/ to run 500+ parallelized tests, each with ±90 spec files and 200+ tests.
The other services are still very naive.
Tested with Cypress 3.4.1 and 3.2.0
MIT
