An antweight combat robot that hates baltimore
I made this project because I love doing robotics, but so many robotics leagues are both prohibitively expensive and require a team. I started on combat robot stuff because I saw a Maker's Muse video on antweight design and I really wanted to experience it myself.
The name and theming are inspired from this iconic ad

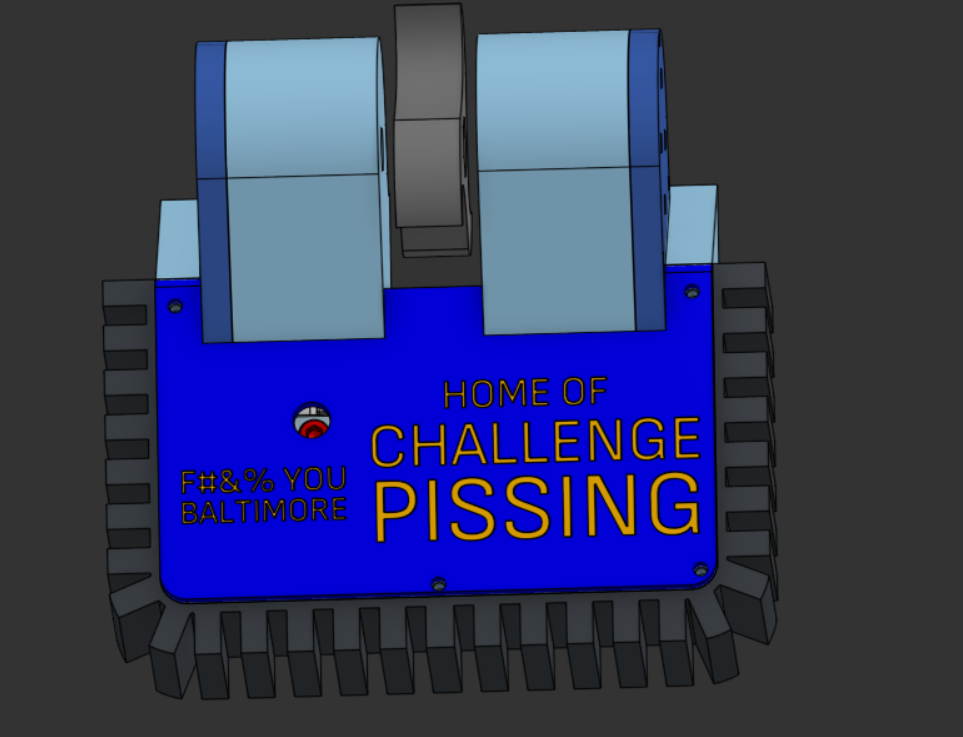

The entire CAD workspace can be found on Onshape
| Item | Quantity | Price | Price After Taxes + Shipping |
|---|---|---|---|
| Malenki-Nano | 1 | $28.00 | $34.30 |
| N20 Gearmotor | 2 | $4.46 | $11.58 |
| Brushless 2205 Motor - 2300kV | 1 | $7.41 | $8.85 |
| AM32 40A Budget ESC with BEC | 1 | $11.38 | $17.65 |
| 2S 550mAh 7.6V 80C LiPo Battery Pack w/XT30 | 1 | $6.64 | $13.77 |
| XT30 Battery Connector | 1 | $1.69 | $5.22 |
| M2 Heat Set Inserts (This brand was shown to be the strongest in testing by CNC Kitchen) | 1 | $8.99 | $9.53 |
| M5 Female to Female Standoff x 25mm | 2 | $1.40 | $6.78 |
| Item | Quantity | Price | Price After Taxes + Shipping |
|---|---|---|---|
| Battery Charger | 1 | $15.99 | $16.95 |
| A compatible transmitter (I used a Flysky FS-i6x (cheaper to get on amazon if you have prime, if not get it on aliexpress)) | 1 | $54.99 | $59.29 |
Total: $183.92
